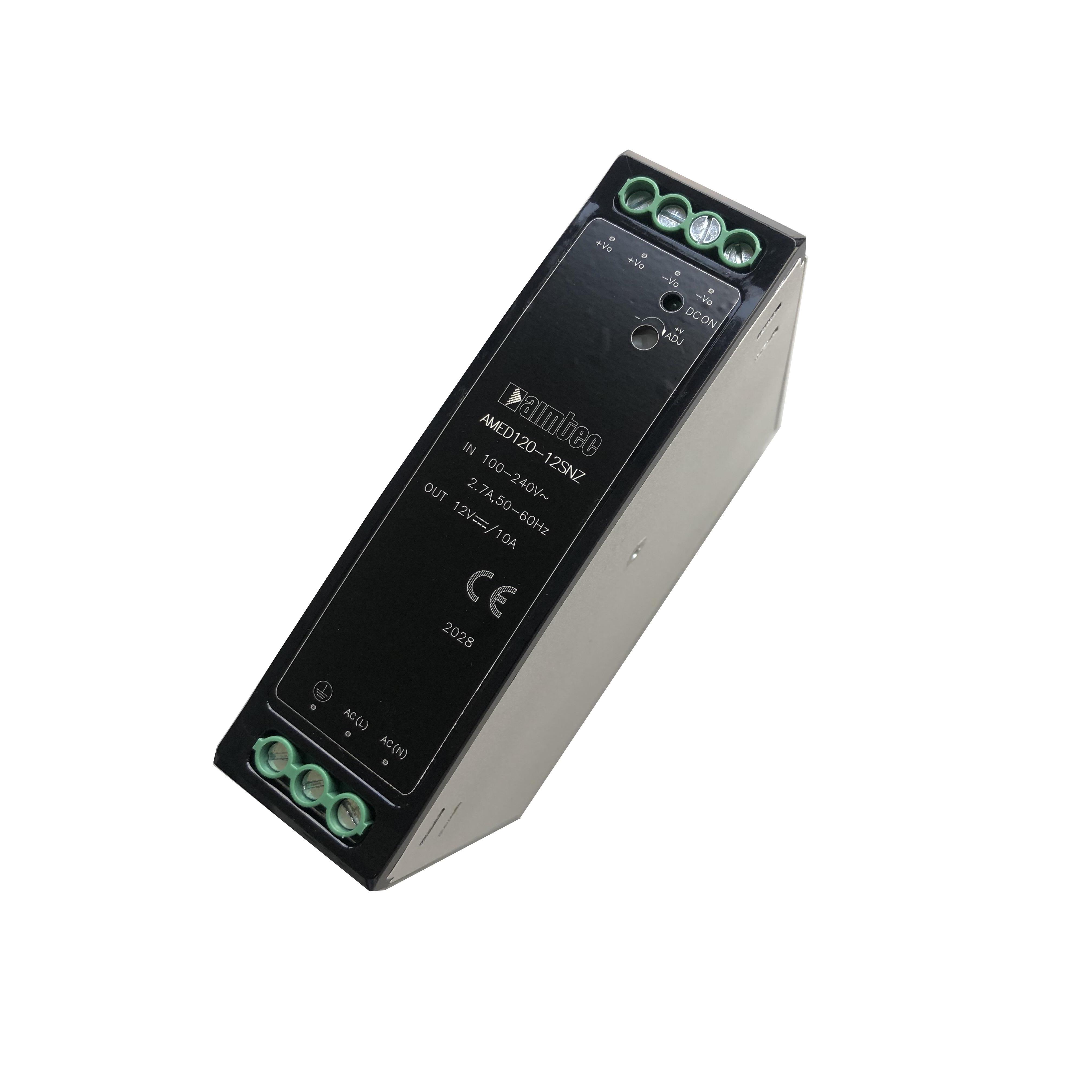

AMED120-12SNZ-B

Active

aimtec

AC/DC DIN RAIL SUPPLY 2X12V 120W

Search across all available documentation for this part.

Active

aimtec

AC/DC DIN RAIL SUPPLY 2X12V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	AMED120-12SNZ-B

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	Household Appliances, ITE (Commercial)
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	264 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	85 %
Features	Universal Input
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Size / Dimension [x]	4.72 in
Size / Dimension [x]	120 mm
Size / Dimension [y]	1.38 "
Size / Dimension [y]	35 mm
Size / Dimension [z]	5.04 "
Size / Dimension [z]	128 mm
Standard Number	60335-1, 62368-1
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	DC Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation	DC Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Efficiency	Current - Output (Max) [Max]	Features	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Input Type	Operating Temperature [Min]	Operating Temperature [Max]
aimtec AMED120-24SNZ	90 V	1	4000 V	264 V	4.72 in	1.38 "	35 mm	5.04 "	120 mm	128 mm	60335-1 62368-1	88 %	5 A	Universal Input	24 V	90 VAC	264 VAC	Household Appliances ITE (Commercial)	AC or DC	-20 C	60 °C
aimtec AMED120-12SNZ-B	90 V	1	4000 V	264 V	4.72 in	1.38 "	35 mm	5.04 "	120 mm	128 mm	60335-1 62368-1	85 %	10 A	Universal Input	12 V	90 VAC	264 VAC	Household Appliances ITE (Commercial)	AC or DC	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 2X12V 120W
