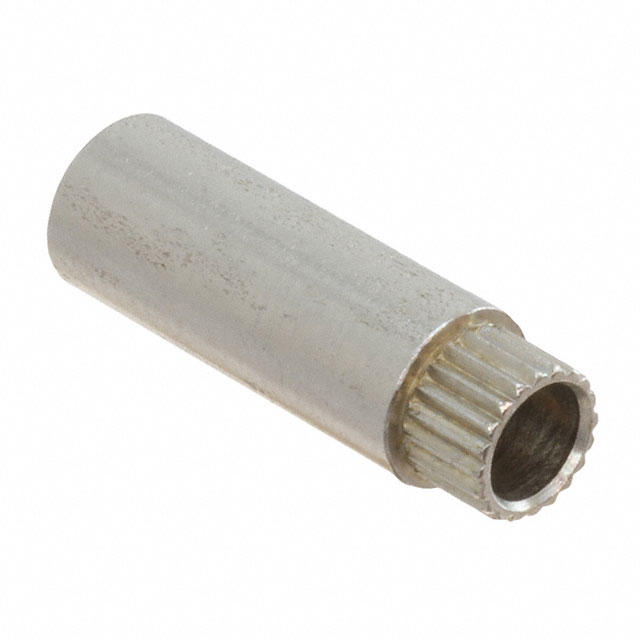

M1702-B-3005-B
ActiveRAF Electronic Hardware
6MM RD X 20MM X M3 THD
Deep-Dive with AI
Search across all available documentation for this part.
M1702-B-3005-B
ActiveRAF Electronic Hardware
6MM RD X 20MM X M3 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1702-B-3005-B |
|---|---|
| Between Board Height | 20 mm |
| Between Board Height | 0.787 in |
| Diameter - Inside [diameter] | 0.15 " |
| Diameter - Inside [diameter] | 3.8 mm |
| Diameter - Outside [diameter] | 0.236 in |
| Diameter - Outside [diameter] | 6 mm |
| Gender | Swage, Female |
| Length - Overall [x] | 0.894 in |
| Length - Overall [x] | 22.7 mm |
| Material | Brass |
| Screw, Thread Size | M3x0.5 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.28 | |
| 5 | $ 10.63 | |||
| 10 | $ 10.04 | |||
| 25 | $ 9.35 | |||
| 50 | $ 8.90 | |||
| 100 | $ 8.49 | |||
| 250 | $ 8.02 | |||
| 500 | $ 7.70 | |||
| 1000 | $ 7.42 | |||
Description
General part information
M1702 Series
Round Standoff Threaded M3x0.5 Brass 0.787" (20.00mm)
Documents
Technical documentation and resources
No documents available
