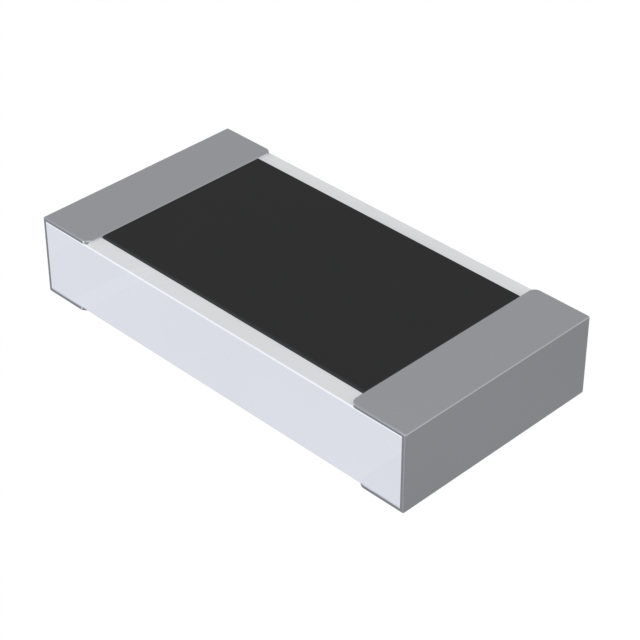

CRGH1206F3K9
ActiveTE Connectivity AMP Connectors
RES 3.9K OHM 1% 1/2W 1206
Deep-Dive with AI
Search across all available documentation for this part.
CRGH1206F3K9
ActiveTE Connectivity AMP Connectors
RES 3.9K OHM 1% 1/2W 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRGH1206F3K9 |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Ratings | AEC-Q200 |
| Resistance | 3.9 kOhms |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [y] | 1.55 mm |
| Size / Dimension [y] | 0.061 in |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20000 | $ 0.02 | |
CRGH1206 Series
RES 3.9K OHM 1% 1/2W 1206
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Composition | Supplier Device Package | Resistance | Ratings | Power (Watts) | Power (Watts) | Tolerance | Number of Terminations | Features | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CRGH1206F3K9 | 155 °C | -55 °C | 1206 (3216 Metric) | Thick Film | 1206 | 3.9 kOhms | AEC-Q200 | 0.5 W | 0.5 W | 1 % | 2 | Automotive AEC-Q200 | 100 ppm/°C | 1.55 mm | 0.122 " | 0.061 in | 3.1 mm |
Description
General part information
CRGH1206 Series
3.9 kOhms ±1% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
