Q-2G04N000H084i

Active

Amphenol Custom Cable

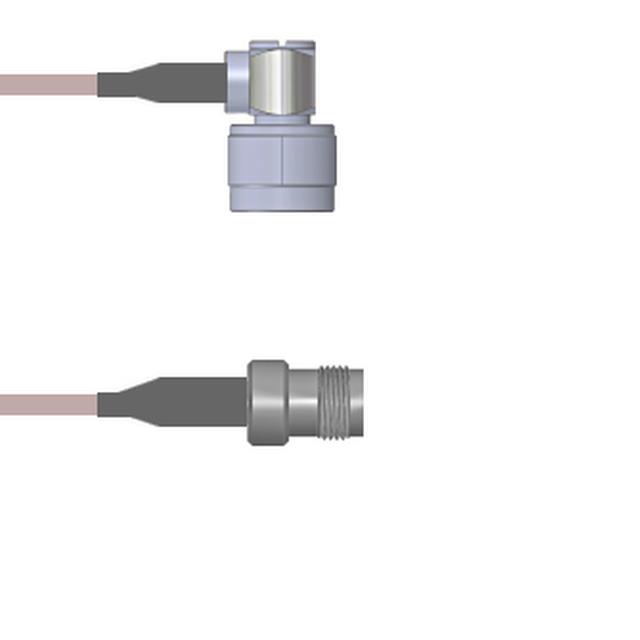

CBL ASSY NTYPE-TNC PLUG-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2G04N000H084i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2G04N000H084i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms

Q-2G04N0 Series

Part	2nd Contact Gender	Length	Length	Length	Overall Impedance	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Type	Frequency - Max [Max]	Color	Features	2nd Connector	1st Contact Gender	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2G04N000H002M	Female	6.6 ft	78.7 in	2 m	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142
Amphenol Custom Cable Q-2G04N000H003M	Female	9.8 '	118.1 in	3 m	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142
Amphenol Custom Cable Q-2G04N000H072i	Female	6 ft	72 in	1.8 m	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142
Amphenol Custom Cable Q-2G04N000H018i	Female				50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2G04N000H108i	Female	9 ft	108 in	2.7 m	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142
Amphenol Custom Cable Q-2G04N000H001M	Female	3.3 ft	39.4 in	1 m	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142
Amphenol Custom Cable Q-2G04N000H084i	Female	7 ft	84 in	2.1 m	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142
Amphenol Custom Cable Q-2G04N000H.25M	Female				50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142		250 mm	9.843 "
Amphenol Custom Cable Q-2G04N000H0.5M	Female		19.69 "	50 cm	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142
Amphenol Custom Cable Q-2G04N000H006i	Female		6 in	152.4 mm	50 Ohms	Free Hanging (In-Line)	N-Type Plug Right Angle	Free Hanging (In-Line)	11 GHz	Copper	Shielded	TNC Jack	Male	RG-142

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 156.24
		25	$ 153.19
		50	$ 150.15
		100	$ 147.11
		250	$ 144.06

Description

General part information

Q-2G04N0 Series

Cable Assembly Coaxial N-Type to TNC RG-142 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
