24812-BX
ActiveSOL 12V 7.7OHM CONT #18
24812-BX
ActiveSOL 12V 7.7OHM CONT #18
Description
General part information
24812-BX Series

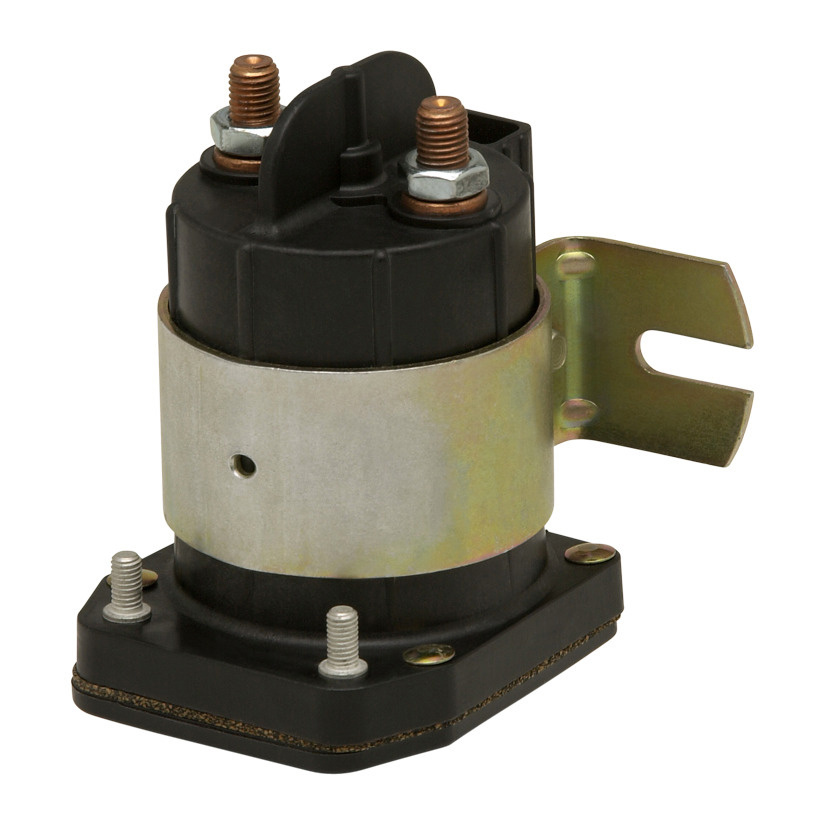

Designed for heavy-duty vehicles and large machinery, this Plastic-Body Continuous-Duty SPST Series Heavy-Duty Solenoid Relay (24812-BX) features a 225 A continuous current rating and an insulated 12 V coil with stud terminals and a coil impedance of 7.7 ohms. The individually boxed Cole Hersee solenoid relay has copper contacts and an L-style metal bracket.
Technical Specifications
Parameters and characteristics for this part
| Specification | 24812-BX |
|---|---|
| Coil Current | 1.6 A |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NO |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 225 A |
| Form A Count | 1 |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage DC (Max) | 14 VDC |
| Termination Style | Stud |
