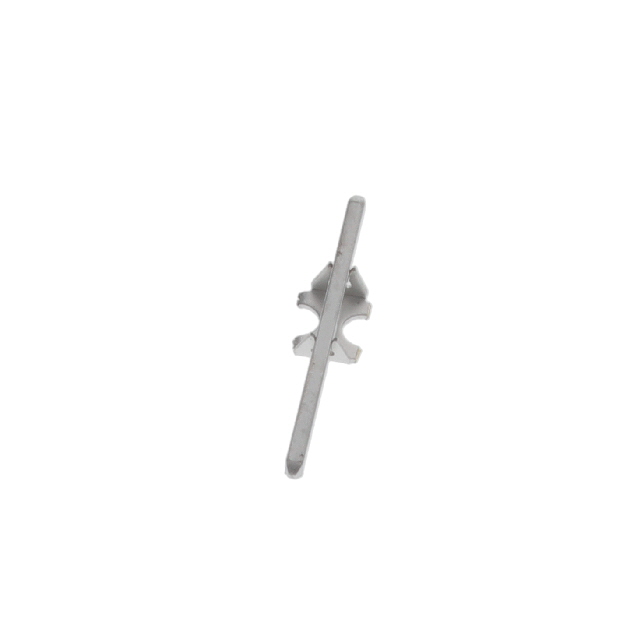

T-1S6-08-T-2
ActiveSamtec Inc.
MACHINED TERMINALS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T-1S6-08-T-2
ActiveSamtec Inc.
MACHINED TERMINALS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T-1S6-08-T-2 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Phosphor Bronze |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.53 in |
| Length - Overall [x] | 13.46 mm |
| Mounting Hole Diameter [diameter] | 0.04 in |
| Mounting Hole Diameter [diameter] | 1.02 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange | 0.64 mm |
| Pin Size - Above Flange | 0.025 in |
| Terminal Style | Smooth |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.10 | |
| 10 | $ 0.04 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| 2500 | $ 0.02 | |||
Description
General part information
T-1S6 Series
PC Pin Terminal Connector Through Hole Tin 0.025" (0.64mm) Square
