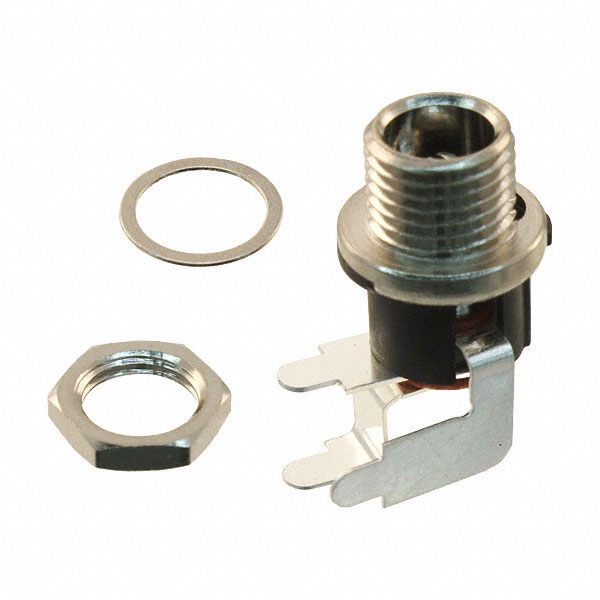

PJ-066B
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-066B
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-066B |
|---|---|
| Actual Diameter [diameter] | 0.098 ", 0.224 in |
| Actual Diameter [diameter] | 2.5 mm, 5.7 mm |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Features | Thread Lock, Mounting Hardware |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Includes | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth [x] | 0.331 in |
| Mating Length/Depth [x] | 8.4 mm |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Thread Size | 5/16"-32 |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.94 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.67 | |||
| 50 | $ 1.63 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.37 | |||
Description
General part information
PJ-066 Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle
