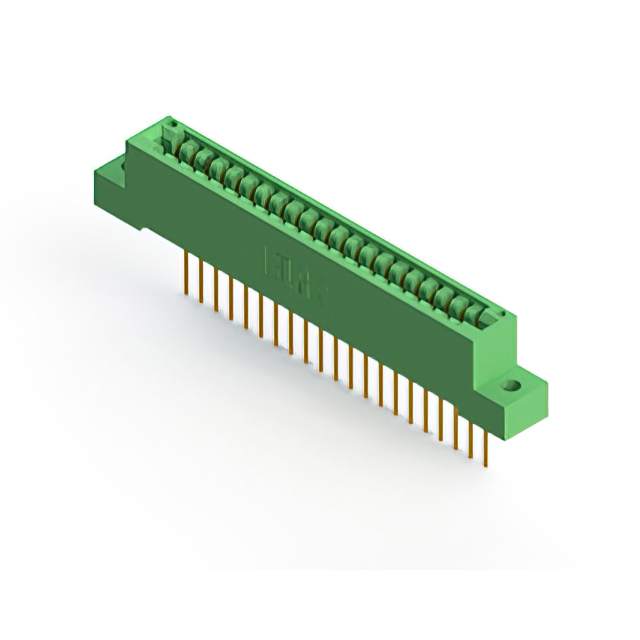

346-021-541-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-021-541-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-021-541-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 21 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
346-021 Series
| Part | Card Type | Gender | Pitch [x] | Pitch [x] | Contact Type | Read Out | Number of Positions | Contact Material | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole Right Angle | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Wire Wrap | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Wire Wrap | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Eyelet(s) | Side Mount Opening Unthreaded | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Wire Wrap | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole Right Angle | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Wire Wrap | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 4-40 Threaded Insert Top Mount Opening | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Eyelet(s) | M3 Threaded Insert Top Mount Opening | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Non Specified - Single Edge | Female | 0.125 in | 3.18 mm | Cantilever | Single | 21 | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-021 Series
21 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
