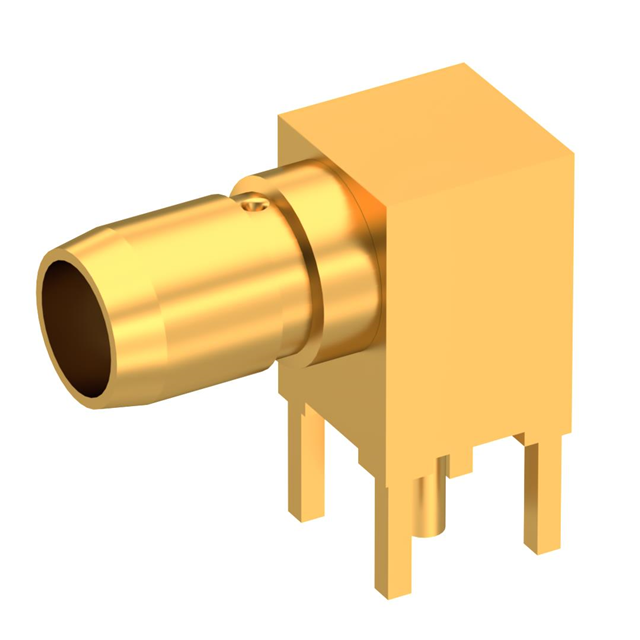

R128665820

Active

Radiall USA, Inc.

BMA / RIGHT ANGLE RECEPTACLE FOR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BMA / RIGHT ANGLE RECEPTACLE FOR

Technical Specifications

Parameters and characteristics for this part

Specification	R128665820

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	350 V

Part	Dielectric Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mating Cycles	Body Material	Frequency - Max [Max]	Connector Style	Number of Ports	Fastening Type	Contact Termination	Connector Type	Impedance	Body Finish	Voltage Rating	Shield Termination	Mounting Type	Center Contact Material
Radiall USA, Inc. R128665820	Polytetrafluoroethylene (PTFE)	Gold	125 °C	-65 ░C	Gold	500	Brass	22 GHz	BMA	1	Snap-On	Solder	Male Pin Receptacle	50 Ohms	Gold	350 V	Solder	Through Hole Right Angle	Brass
Radiall USA, Inc. R128665820W	Polytetrafluoroethylene (PTFE)	Gold	125 °C	-65 ░C	Gold	500	Brass	22 GHz	BMA	1	Snap-On	Solder	Male Pin Receptacle	50 Ohms	Gold	350 V	Solder	Through Hole Right Angle	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.63

General part information

BMA Connector Receptacle, Male Pin 50 Ohms Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
