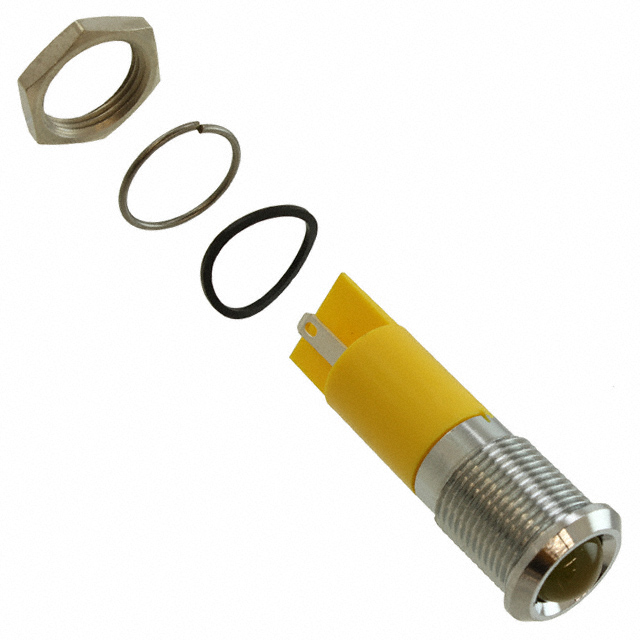

Q14P1CXXHY24E
ActiveAPEM
LED INDICATOR 14MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
Q14P1CXXHY24E
ActiveAPEM
LED INDICATOR 14MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q14P1CXXHY24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1300 mcd |
| Panel Cutout Dimensions | 13.97 mm |
| Panel Cutout Dimensions | 0.55 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q14P1CXXHY Series
LED Panel Indicator Yellow Diffused 24V 20mA Quick Connect - 0.110" (2.8mm)
Documents
Technical documentation and resources
