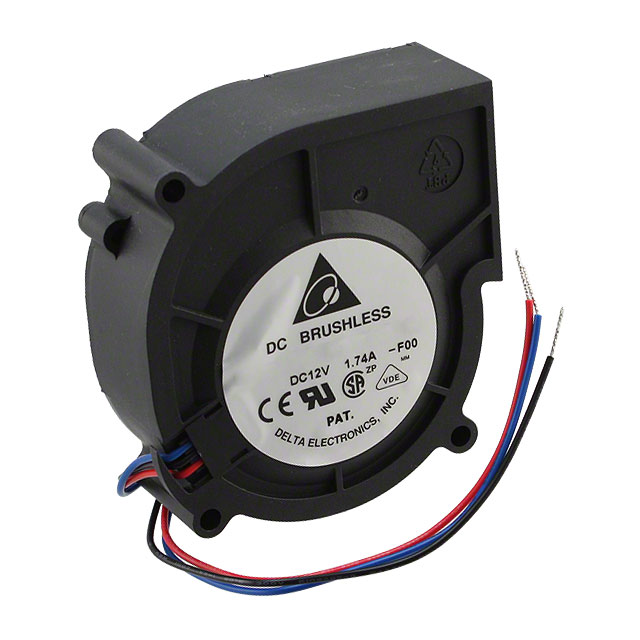

BCB0812GHN-F00

Active

Delta Electronics

FAN BLOWER 80X30MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 80X30MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	BCB0812GHN-F00

Air Flow	26 CFM
Air Flow	0.728 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.45 A
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	67.8 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	17.4 W
RPM	9500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	80 mm
Size / Dimension [y]	75 mm
Static Pressure	663.3 Pa
Static Pressure	2.663 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [y]	30 mm

Part	Approval Agency	Noise	Air Flow	Air Flow	Bearing Type	Lifetime @ Temp.	Material - Blade	Power (Watts)	Width [y]	Voltage - Rated	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Termination	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Fan Type	RPM	Features	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]
Delta Electronics BCB0812UHN-TP09	CE CSA UL VDE	69.3 dB(A)	30.2 CFM	0.846 m³/min	Ball	50000 Hrs	Plastic	27.6 W	30 mm	12 VDC	915.4 Pa	3.675 in H2O	10.8 VDC	12.6 VDC	Plastic	4 Wire Leads	2.3 A	75 mm	Rectangular/Rounded	80 mm	Blower	10800 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics BCB0812GHN-F00	CE CSA UL VDE	67.8 dB(A)	26 CFM	0.728 m³/min	Ball	50000 Hrs	Plastic	17.4 W	30 mm	12 VDC	663.3 Pa	2.663 in H2O			Plastic	3 Wire Leads	1.45 A	75 mm	Rectangular/Rounded	80 mm	Blower	9500 RPM	Locked Rotor Protection Speed Sensor (Tach)	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics BCB0812UHN	CE CSA UL VDE	69.3 dB(A)	30.2 CFM	0.846 m³/min	Ball	50000 Hrs	Plastic	27.6 W	30 mm	12 VDC	915.4 Pa	3.675 in H2O			Plastic	2 Wire Leads	2.3 A	75 mm	Rectangular/Rounded	80 mm	Blower	10800 RPM		-10 °C	-10 °C	60 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Rectangular/Rounded - 80mm L x 75mm H Ball 26.0 CFM (0.728m³/min) 3 Wire Leads
