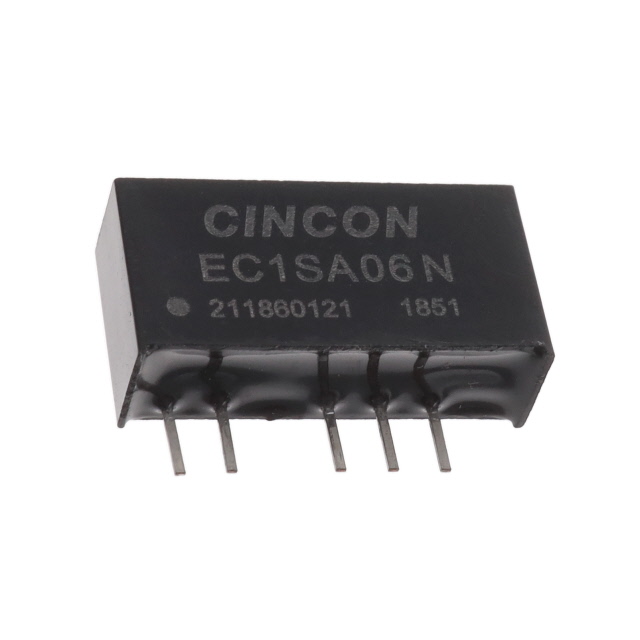

EC1SA06N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC1SA06N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC1SA06N

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	74 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Size / Dimension [x]	19.6 mm
Size / Dimension [x]	0.77 in
Size / Dimension [y]	6.1 mm
Size / Dimension [y]	0.24 "
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

EC1SAN Series

Part	Voltage - Isolation	Features	Applications	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Approval Agency	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Type	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Cincon Electronics Co. LTD EC1SA13N	1.5 kV	SCP	ITE (Commercial)	Through Hole	13.2 V	10.8 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	81 %	85 °C	-40 °C	67 mA	15 V	1	Isolated Module
Cincon Electronics Co. LTD EC1SA04NS	1.5 kV	SCP	ITE (Commercial)	Surface Mount	5.5 V	4.5 V	16.2 mm	9.2 mm	0.3 "	0.64 in	7.4 mm	0.36 "	10-SMD Module 6 Leads	CE	78 %	85 °C	-40 °C	42 mA	12 V	2	Isolated Module	-12 V	42 mA
Cincon Electronics Co. LTD EC1SA04N	1.5 kV	SCP	ITE (Commercial)	Through Hole	5.5 V	4.5 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	78 %	85 °C	-40 °C	42 mA	12 V	2	Isolated Module	-12 V	42 mA
Cincon Electronics Co. LTD EC1SA25N	1.5 kV	SCP	ITE (Commercial)	Through Hole	26.4 V	21.6 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE		85 °C	-40 °C		15 V	2	Isolated Module	-15 V		33 mA
Cincon Electronics Co. LTD EC1SA14N	1.5 kV	SCP	ITE (Commercial)	Through Hole	13.2 V	10.8 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	80 %	85 °C	-40 °C	42 mA	12 V	2	Isolated Module	-12 V	42 mA
Cincon Electronics Co. LTD EC1SA23N	1.5 kV	SCP	ITE (Commercial)	Through Hole	26.4 V	21.6 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	81 %	85 °C	-40 °C	67 mA	15 V	1	Isolated Module
Cincon Electronics Co. LTD EC1SA06N	1.5 kV	SCP	ITE (Commercial)	Through Hole	5.5 V	4.5 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	74 %	85 °C	-40 °C		5 V	2	Isolated Module	-5 V		100 mA	100 mA
Cincon Electronics Co. LTD EC1SA16N	1.5 kV	SCP	ITE (Commercial)	Through Hole	13.2 V	10.8 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	77 %	85 °C	-40 °C		5 V	2	Isolated Module	-5 V		100 mA	100 mA
Cincon Electronics Co. LTD EC1SA24N	1.5 kV	SCP	ITE (Commercial)	Through Hole	26.4 V	21.6 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	81 %	85 °C	-40 °C	42 mA	12 V	2	Isolated Module	-12 V	42 mA
Cincon Electronics Co. LTD EC1SA26N	1.5 kV	SCP	ITE (Commercial)	Through Hole	26.4 V	21.6 V	19.6 mm	6.1 mm	0.4 "	0.77 in	10.2 mm	0.24 "	7-SIP Module 5 Leads	CE	79 %	85 °C	-40 °C		5 V	2	Isolated Module	-5 V		100 mA	100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.97
		5	$ 3.74
		10	$ 3.65
		25	$ 3.55
		50	$ 3.45
		100	$ 3.35
		250	$ 3.31

Description

General part information

EC1SAN Series

Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
