Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL6208N |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Motor Controller/Driver |
| Primary Attributes | Motors (Stepper) |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | L6208N DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.02 | |
Description
General part information
EVAL6208N Series

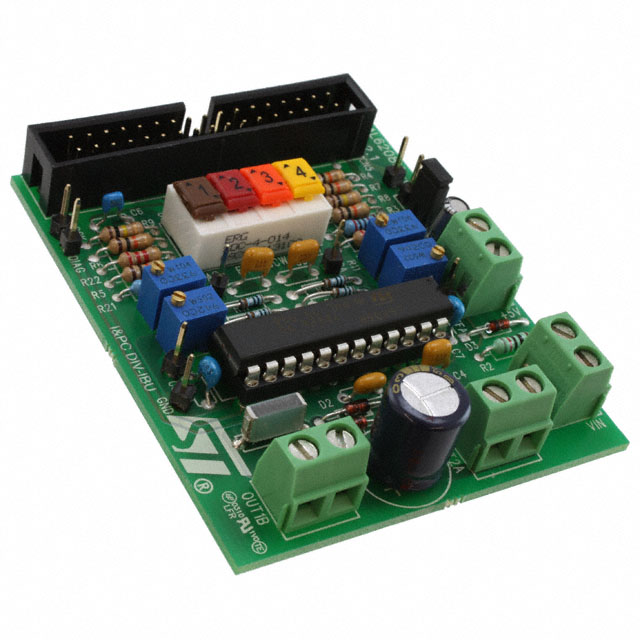

The EVAL6208N is built around L6208 in PowerDip package. It implements a typical stepper motor driver application. Screw connectors provide connection to motor supply rail and 5 V reference for the logic inputs, as well as the four outputs to motor windings. EVAL6208N can be hooked-up to practiSPIN interface board (EVALpractiSPIN) through a 34-pin connector. It is also possible to run board in stand-alone mode: four switches are used to set the direction of the rotation, the stepping sequence and the current decay style, while four potentiometers set the L6208 reference voltage and off-time for the PWM current control; external reference voltages can be provided by a PWM output of a µC.
