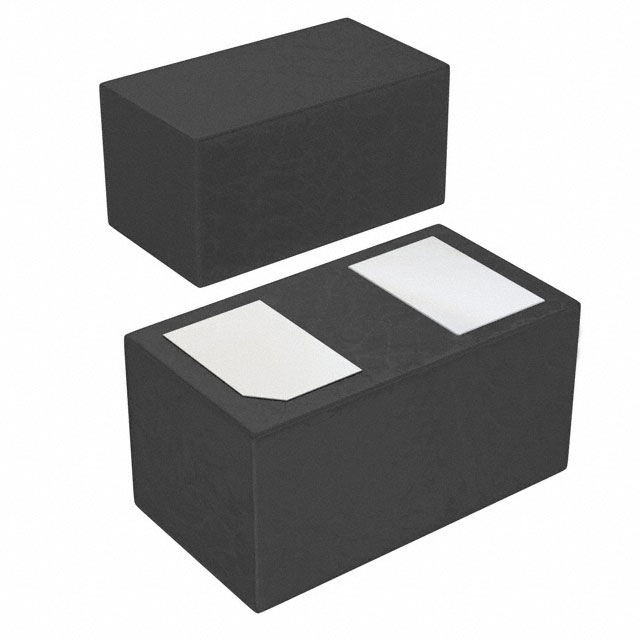

CDBZ0130R-HF

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 0201

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 0201

Technical Specifications

Parameters and characteristics for this part

Specification	CDBZ0130R-HF

Current - Average Rectified (Io)	100 mA
Current - Reverse Leakage @ Vr	300 nA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	0603 Metric
Package / Case	0201
Speed	Any Speed
Speed	200 mA
Supplier Device Package	0603 Metric
Supplier Device Package	0201
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	460 mV

DIODE SCHOTTKY 30V 100MA 0201

Part	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Supplier Device Package	Current - Reverse Leakage @ Vr	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology
Comchip Technology CDBZ0130R-HF	Surface Mount	100 mA	460 mV	0603 Metric	0201	300 nA	Any Speed	200 mA	150 °C	-40 °C	0603 Metric	0201	30 V	Schottky

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 30 V 100mA Surface Mount 0201 (0603 Metric)
