6282-2PG-311

Active

Conxall/Switchcraft

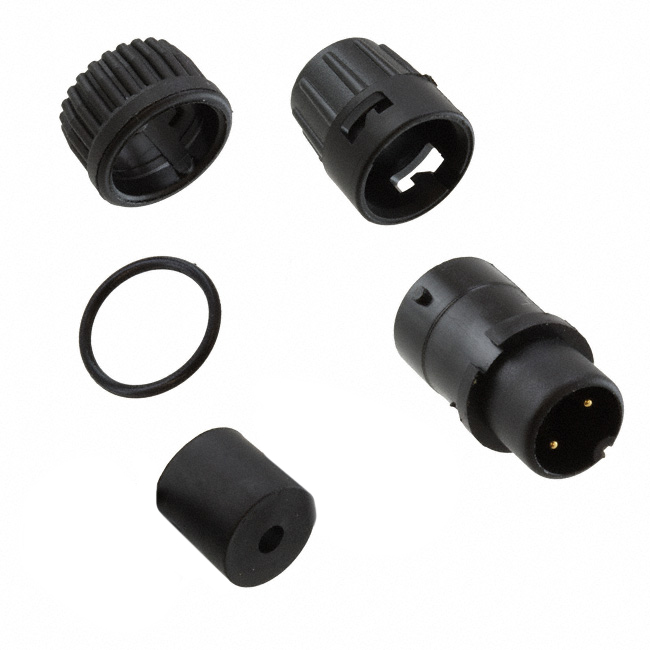

CONN PLUG MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 2P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	6282-2PG-311	6282-2PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Features	Connector Type	Applications	Current Rating (Amps)	Orientation	Voltage Rating	Shielding	Number of Positions	Contact Finish - Mating	Fastening Type	Ingress Protection	Primary Material	Mounting Type	Backshell Material, Plating	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6282-2PG-315	Black	-40 °C	115 °C	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Backshell	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Keyed	600 V	Unshielded	2	Gold	Bayonet Lock	Weathertight	Plastic	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Brass
Conxall/Switchcraft 6282-2PG-311	Black	-40 °C	115 °C			Backshell	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Keyed	600 V	Unshielded	2	Gold	Bayonet Lock	Weathertight	Plastic	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Brass	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6282-2PG-516	Black	-40 °C	115 °C			Backshell	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Keyed	600 V	Unshielded	2	Gold	Bayonet Lock	Weathertight	Plastic	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Brass				0.16 in	0.18 in	4.06 mm	4.57 mm
