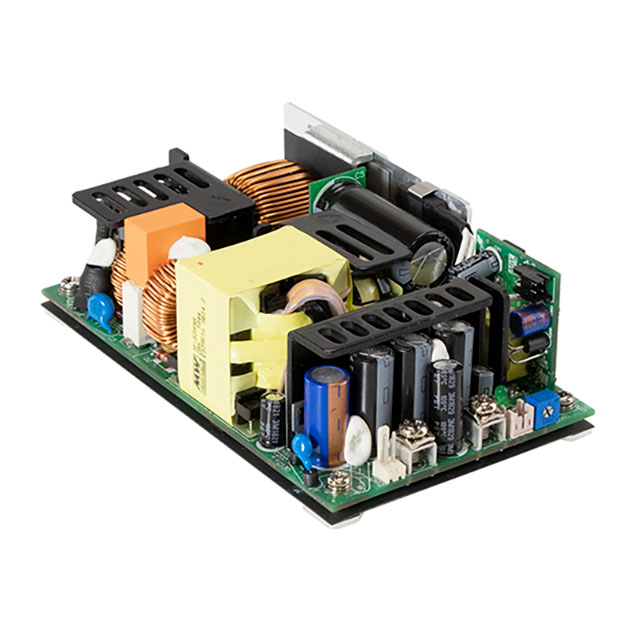

RPS-500-48

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 322W

RPS-500-48

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 322W

Description Specifications Series Pricing CAD Documents

Description

General part information

RPS-500 Series

Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC, 113 ~ 370 VDC Input

Technical Specifications

Parameters and characteristics for this part

Specification	RPS-500-48

Applications	Medical
Approval Agency	EAC, TUV, CE, cURus, CB
Current - Output 1	6.7 A
Efficiency	94 %
Features	Adjustable Output, Universal Input, Remote Sense, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	500 W, 322 W
Size / Dimension Height	1.69 in
Size / Dimension Length	5 in
Size / Dimension Width	3 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	80 V
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	113 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	48 V

RPS-500 Series

Part	Voltage - Output 1	Features	Applications	Approval Agency	Mounting Type	Number of Outputs	Current - Output 1	Voltage - Input (DC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Type	Efficiency	Voltage - Isolation
MEAN WELL USA Inc. RPS-500-18-TF	18 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	27.8 A	370 V	80 V	113 V	264 V	500 W	70 °C	-30 °C	5.12 in	2.3 in	3.39 in	Enclosed	92.5 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-18	18 V	Adjustable Output PFC Remote Sense Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	17.8 A	370 V	80 V	113 V	264 V	320 W 500 W	70 °C	-30 °C	5 in	1.69 in	3 in	Open Frame	92.5 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-12-SF	12 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	41.6 A	370 V	80 V	113 V	264 V	499 W	70 °C	-30 °C	6.3 in	1.69 in	3.39 in	Enclosed	91 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-24	24 V	Adjustable Output PFC Remote Sense Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	13.4 A	370 V	80 V	113 V	264 V	322 W 500 W	70 °C	-30 °C	5 in	1.69 in	3 in	Open Frame	93 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-24-TF	24 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	20.8 A	370 V	80 V	113 V	264 V	499 W	70 °C	-30 °C	5.12 in	2.3 in	3.39 in	Enclosed	93 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-48-TF	48 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	10.4 A	370 V	80 V	113 V	264 V	499 W	70 °C	-30 °C	5.12 in	2.3 in	3.39 in	Enclosed	94 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-48	48 V	Adjustable Output PFC Remote Sense Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	6.7 A	370 V	80 V	113 V	264 V	322 W 500 W	70 °C	-30 °C	5 in	1.69 in	3 in	Open Frame	94 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-27-SF	27 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	18.5 A	370 V	80 V	113 V	264 V	500 W	70 °C	-30 °C	6.3 in	1.69 in	3.39 in	Enclosed	93.5 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-15-SF	15 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	33.3 A	370 V	80 V	113 V	264 V	500 W	70 °C	-30 °C	6.3 in	1.69 in	3.39 in	Enclosed	92 %	4000 Vpk
MEAN WELL USA Inc. RPS-500-24-SF	24 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	20.8 A	370 V	80 V	113 V	264 V	499 W	70 °C	-30 °C	6.3 in	1.69 in	3.39 in	Enclosed	93 %	4000 Vpk

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RPS-500-48 | Datasheet
