Q-2V04E0005108I

Active

Amphenol Custom Cable

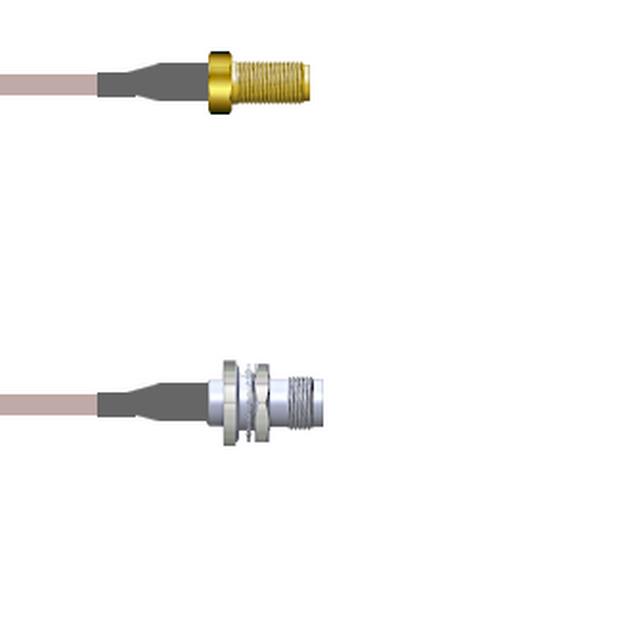

COAX CABLE SMA TO TNC 9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO TNC 9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2V04E0005108I

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	1st Connector Mounting Type	2nd Connector Mounting Feature	Cable Impedance	1st Connector	Style	Length	Length	Length	1st Contact Gender	2nd Contact Gender	Color	Frequency - Max [Max]	Overall Impedance	2nd Connector	Features	2nd Connector Mounting Type	Cable Type	Connector Impedance
Amphenol Custom Cable Q-2V04E0005108I	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms	SMA Jack	SMA to TNC	2.7 m	9 ft	108 in	Female	Female	Copper	3 GHz	50 Ohms	TNC Jack	Shielded	Panel Mount	RG-316	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-316 108.0" (2.7m) 9.0'
