XC6810A4DH0R-G

Active

Torex Semiconductor Ltd

MULTI-FUNCTION MICRO BATTERY CHA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XC6810A4DH0R-G

Active

Torex Semiconductor Ltd

MULTI-FUNCTION MICRO BATTERY CHA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC6810A4DH0R-G

Battery Chemistry	Lithium Ion/Polymer
Battery Pack Voltage	4.35 V
Charge Current - Max [Max]	25 mA
Current - Charging	Constant - Programmable
Fault Protection	Reverse Current, Over Temperature, Short Circuit, Over Voltage
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

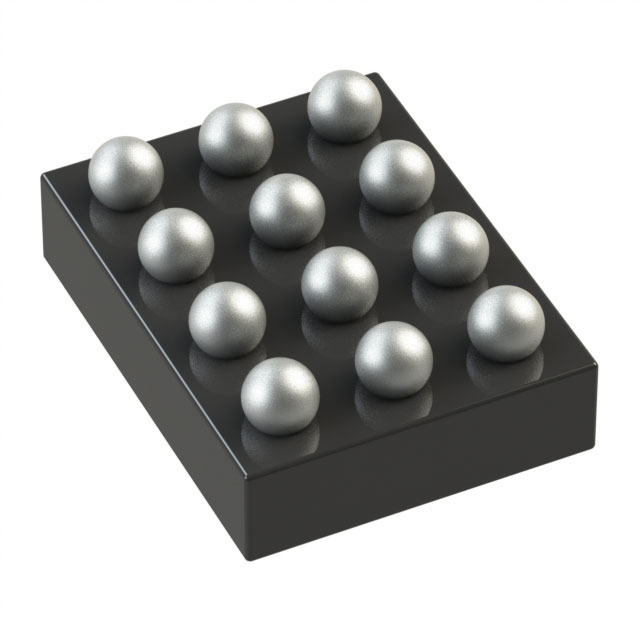

Package / Case	12-XFBGA, WLBGA
Programmable Features	Voltage, Current, Timer
Supplier Device Package	12-WLP
Supplier Device Package [x]	1.17
Supplier Device Package [y]	1.57
Voltage - Supply (Max) [Max]	28 V

XC6810 Series

Part	Voltage - Supply (Max) [Max]	Charge Current - Max [Max]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Number of Cells	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Charging	Battery Chemistry	Fault Protection	Programmable Features	Battery Pack Voltage	Package / Case
Torex Semiconductor Ltd XC6810B43H0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.3 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810B43G0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.3 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810A43J0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.3 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810A44C0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.4 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810A41G0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.1 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810A41J0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.1 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810A4DH0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.35 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810A43G0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.3 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810B41C0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.1 V	12-XFBGA WLBGA
Torex Semiconductor Ltd XC6810A44J0R-G	28 V	25 mA	1.57	12-WLP	1.17	1	85 °C	-40 °C	Surface Mount	Constant - Programmable	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	Current Timer Voltage	4.4 V	12-XFBGA WLBGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.53

Description

General part information

XC6810 Series

Charger IC Lithium Ion/Polymer 12-WLP (1.17x1.57)
