L2M0-4070005MC3300
ObsoleteLumileds

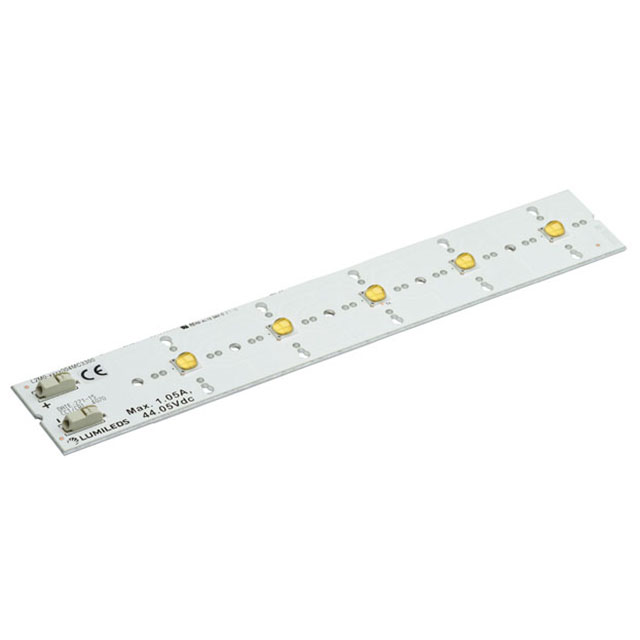

LED MOD LUXEON WH LNR STR 4000K
Deep-Dive with AI
Search across all available documentation for this part.
L2M0-4070005MC3300
ObsoleteLumileds
LED MOD LUXEON WH LNR STR 4000K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L2M0-4070005MC3300 |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| Configuration | Linear Light Strip |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 1.05 A |
| Height [z] | 6.21 mm |
| Lens Type | Domed |
| Lumens/Watt @ Current - Test | 137 lm/W |
| Luminous Flux @ Current/Temperature | 5264 lm |
| Size / Dimension [x] | 198 mm |
| Size / Dimension [y] | 33 mm |
| Temperature - Test | 85 °C |
| Type | LED Module |
| Voltage - Forward (Vf) (Typ) | 54.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
L2M0-4070005MC3300
LED Lighting COBs Engines Modules LED Module LUXEON XR-M White, Neutral Linear Light Strip
Documents
Technical documentation and resources
