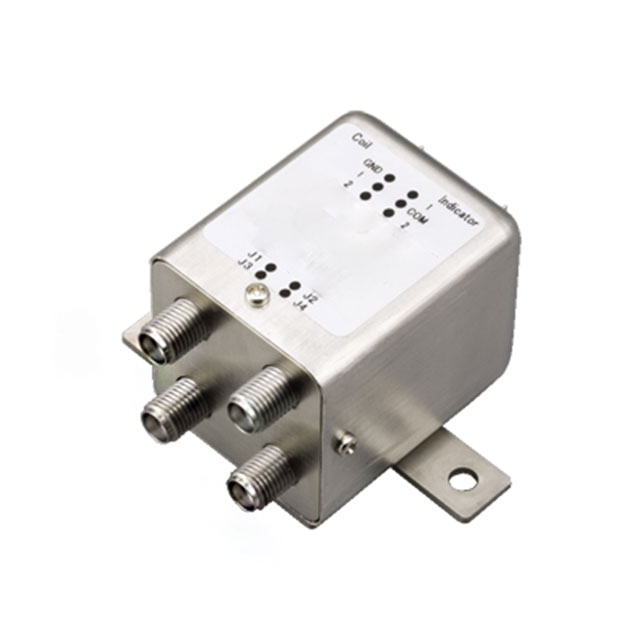

ARD60012
ActivePanasonic Electric Works
IC RF SWITCH 26.5GHZ ARD COAX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARD60012 |
|---|---|
| Frequency Range [Max] | 26.5 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.8 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Pin Contacts, Module |
| RF Type | General Purpose |
| Test Frequency | 26.5 GHz |
| Topology | Reflective |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1275.64 | |
Description
General part information
ARD600 Series
RF Switch IC General Purpose 26.5 GHz 50Ohm
