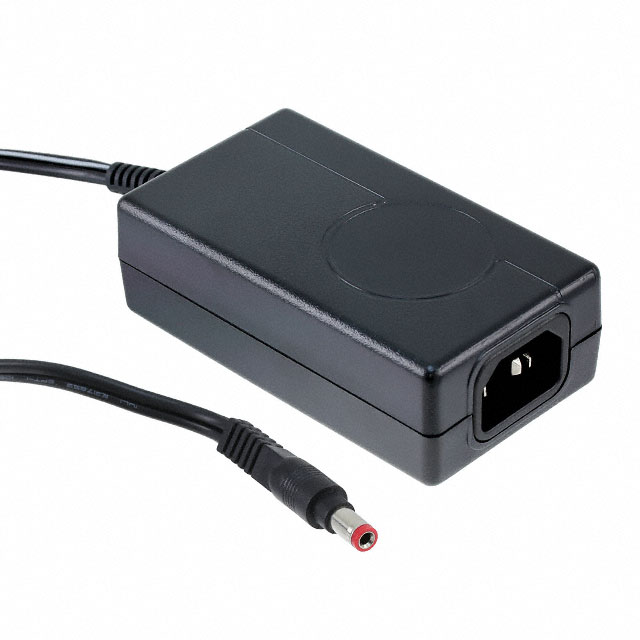

TE30A1203F01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTE30 Demko Certificate Datasheet +2

TE30A1203F01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 30W

Deep-Dive with AI

DocumentsTE30 Demko Certificate Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE30A1203F01

Applications	ITE (Commercial)
Approval Agency	UL, CB, CE, DEMKO
Cord Length	1.45 m
Cord Length	57 "
Current - Output (Max) [Max]	2.5 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	95.5 mm
Size / Dimension [x]	3.76 in
Size / Dimension [y]	2.13 in
Size / Dimension [y]	54 mm
Size / Dimension [z]	31 mm
Size / Dimension [z]	1.22 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	0.551 lb
Weight	249.93 g

TE30A1203 Series

Part	Input Type	Voltage - Output	Current - Output (Max) [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Cord Length	Cord Length	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Connector	Efficiency	Applications	Form	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Polarization	Weight	Weight
SL POWER / Advanced Energy TE30A1203Q01	Cord	12 V	2.5 A	CE	2.13 in	95.5 mm	31 mm	1.22 in	3.76 in	54 mm	1.45 m	57 "	30 W	-20 C	70 °C	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C18	Level VI	ITE (Commercial)	Desktop (Class II)	International	90 VAC	264 VAC	Positive Center
SL POWER / Advanced Energy TE30A1203N01	Cord	12 V	2.5 A	CB CE CSA UL	2.13 in	95.5 mm	31 mm	1.22 in	3.76 in	54 mm	1.45 m	57 "	30 W	-20 C	40 °C	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C8	Level VI	ITE (Commercial)	Desktop (Class II)	International	90 VAC	264 VAC	Positive Center	0.551 lb	249.93 g
SL POWER / Advanced Energy TE30A1203F01	Cord	12 V	2.5 A	CB CE DEMKO UL	2.13 in	95.5 mm	31 mm	1.22 in	3.76 in	54 mm	1.45 m	57 "	30 W	-20 C	40 °C	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	Level VI	ITE (Commercial)	Desktop (Class I)	International	90 VAC	264 VAC	Positive Center	0.551 lb	249.93 g
SL POWER / Advanced Energy TE30A1203B01	Fixed Blade Multi-Blade	12 V	2.5 A	CB CE DEMKO UL	2.17 in	96 mm	33.6 mm	1.32 in	3.78 "	55 mm	1.45 m	57 "	30 W	-20 C	40 °C	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	NEMA 1-15P Multi-Blade	Level VI	ITE (Commercial)	Wall Mount (Class II)	North America	90 VAC	264 VAC	Positive Center	0.551 lb	249.93 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.01
		5	$ 24.63
		10	$ 24.24
		25	$ 23.09
		50	$ 22.32
		100	$ 20.78
		250	$ 20.47
