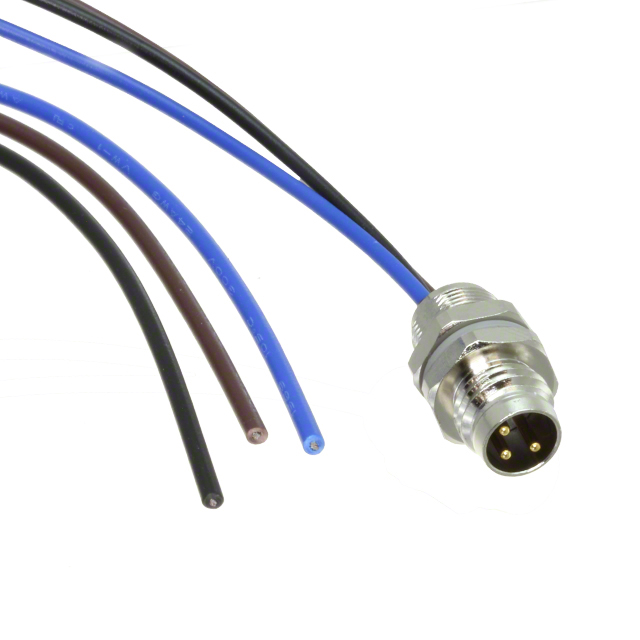

T4072014031-001
ActiveTE Connectivity AMP Connectors
CIRC CBL 3POS PLUG TO WIRE 0.66'
Deep-Dive with AI
Search across all available documentation for this part.
T4072014031-001
ActiveTE Connectivity AMP Connectors
CIRC CBL 3POS PLUG TO WIRE 0.66'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4072014031-001 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 3 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length | 200 mm |
| Length [x] | 0.66 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.37 | |
| 10 | $ 7.29 | |||
| 25 | $ 7.10 | |||
| 50 | $ 6.91 | |||
| 100 | $ 6.49 | |||
| 250 | $ 6.45 | |||
| 500 | $ 6.06 | |||
| 1000 | $ 5.41 | |||
T40720 Series
CIRC CBL 3POS PLUG TO WIRE 0.66'
| Part | 1st Connector Type | 2nd Connector Type | 1st Connector Gender | Usage | Length | Length [x] | Color | 1st Connector Shell Size - Insert | Shielding | 1st Connector Mounting Type | 1st Connector Number of Positions | Cable Type | 1st Connector Number of Positions Loaded | 1st Connector Orientation | Assembly Configuration | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4072014031-001 | Plug | Wire Leads | Male Pins | Industrial Environments | 200 mm | 0.66 ft | Multiple | M8 | Unshielded | Panel Mount | 3 | Individual | All | A | Standard | IP67 - Dust Tight, Waterproof |
Description
General part information
T40720 Series
Circular Cable Assembly Unshielded 0.66' (200.00mm)
Documents
Technical documentation and resources
No documents available
