Specification	2-1969614-0

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.165 in
Row Spacing	0.165 in

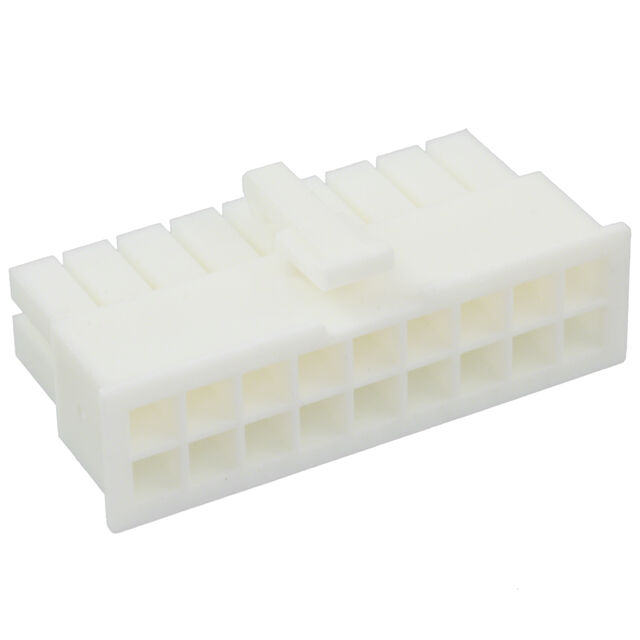

1969614 Series

Part	Note	Row Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Contact Type	Connector Type	Color	Insulation Material	Contact Termination	Number of Rows	Pitch	Number of Positions	Mounting Type
TE Connectivity AMP Connectors 1-1969614-2	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2	0.165 in	12	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-1969614-8	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2	0.165 in	18	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-1969614-0	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2	0.165 in	20	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1969614-8	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2	0.165 in	8	Free Hanging (In-Line)

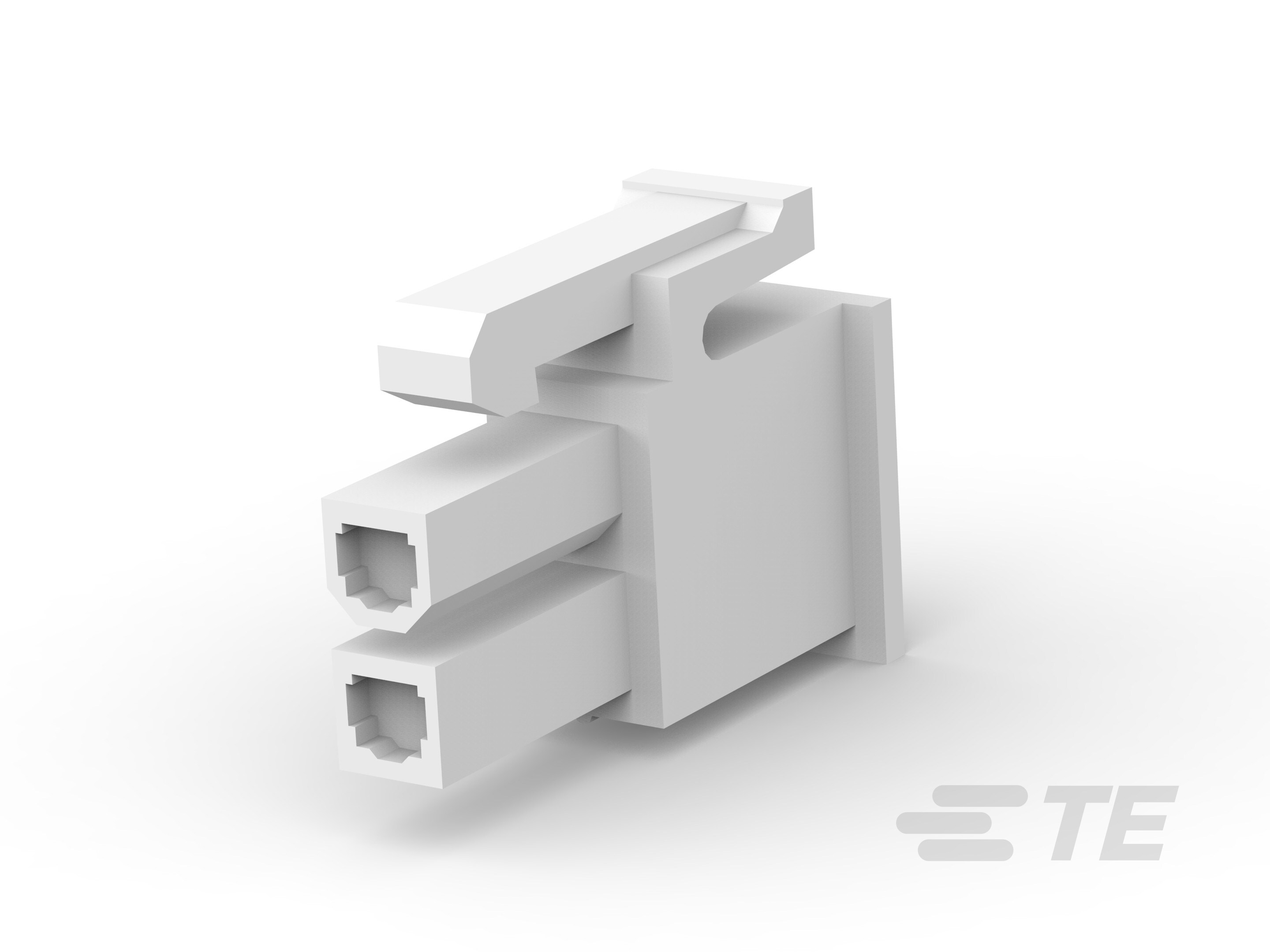

TE Connectivity AMP Connectors 1969614-2	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2		2	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-1969614-6	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2	0.165 in	16	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-1969614-0	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2	0.165 in	10	Free Hanging (In-Line)

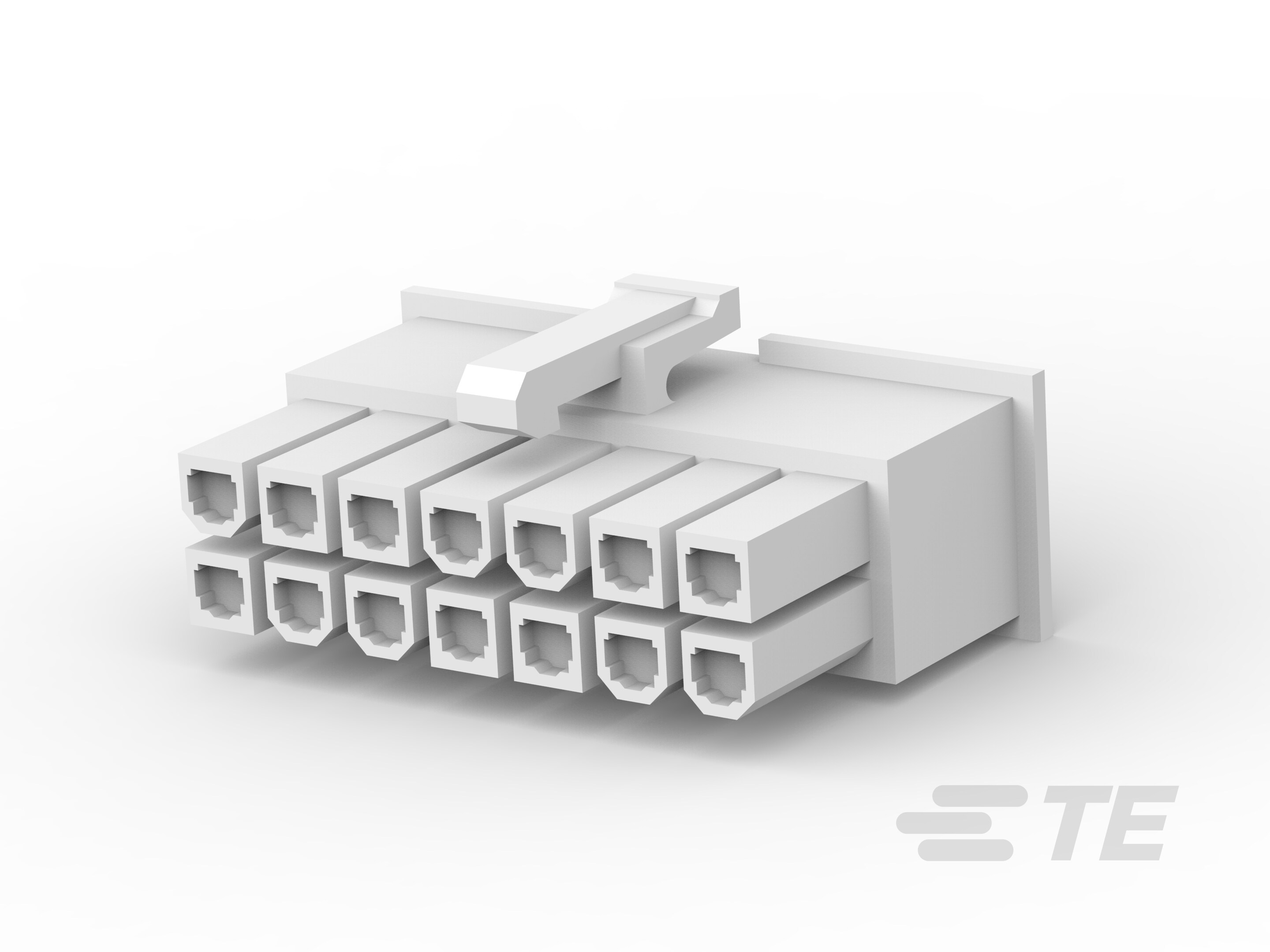

TE Connectivity AMP Connectors 1-1969614-4	Contacts Not Included	0.165 in	-40 °C	105 °C	Latch Lock	Female Socket	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	Crimp	2	0.165 in	14	Free Hanging (In-Line)
