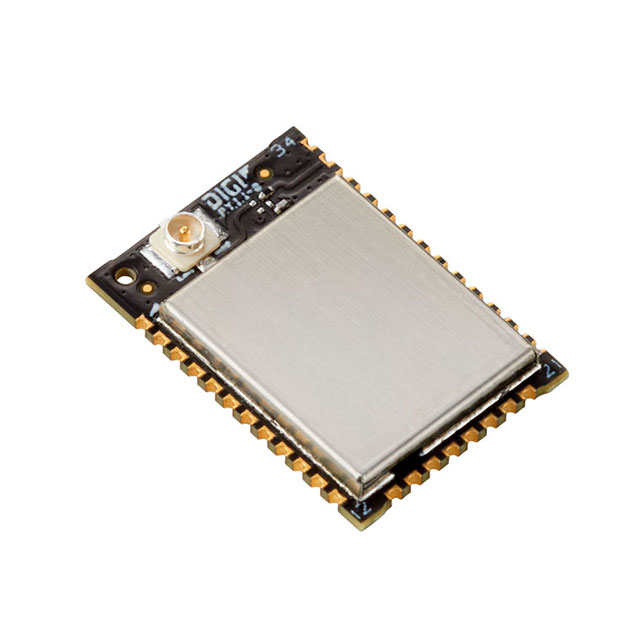

XBRR-24Z8UM

Active

Digi

RF TXRX MOD BT TRACE + U.FL SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Digi XBee RR Migration Guide

XBRR-24Z8UM

Active

Digi

RF TXRX MOD BT TRACE + U.FL SMD

Deep-Dive with AI

DocumentsDatasheet Digi XBee RR Migration Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XBRR-24Z8UM

Antenna Type	Integrated, Trace + U.FL
Current - Receiving	14.5 mA
Current - Transmitting	195 mA
Data Rate	250 KBd
Frequency	2.4 GHz
Memory Size	1 MB, 96 kB
Modulation	DSSS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	34-SMD Module
Power - Output	19 dBm
Protocol	Zigbee®
RF Family/Standard	Bluetooth, 802.15.4
Sensitivity	-103 dBm
Serial Interfaces	UART, I2C, SPI
Utilized IC / Part	EFR32MG
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.71 V

XBRR-24 Series

Part	Serial Interfaces	Antenna Type	Protocol	Data Rate	RF Family/Standard	Frequency	Current - Transmitting	Modulation	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Utilized IC / Part	Current - Receiving	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	Mounting Type	Memory Size
Digi XBRR-24Z8PS-J	I2C SPI UART	Integrated Trace	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	32 mA	DSSS	-103 dBm	85 °C	-40 °C	34-SMD Module	EFR32MG	14 mA	1.71 V	3.8 V	8 dBm	Surface Mount	1 MB 96 kB
Digi XBRR-24Z8PT	I2C SPI UART	Integrated Trace	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	195 mA	DSSS	-103 dBm	85 °C	-40 °C	20-DIP Module	EFR32MG	14.5 mA	1.71 V	3.8 V	19 dBm	Through Hole	1 MB 96 kB
Digi XBRR-24Z8UT-J	I2C SPI UART	Integrated Trace + U.FL	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	30 mA	DSSS	-103 dBm	85 °C	-40 °C	20-DIP Module	EFR32MG	14.5 mA	1.71 V	3.8 V	8 dBm	Through Hole	1 MB 96 kB
Digi XBRR-24Z8ST	I2C SPI UART	Antenna Not Included SMA	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	193 mA	DSSS	-103 dBm	85 °C	-40 °C	20-DIP Module	EFR32MG	14 mA	1.71 V	3.8 V	8 dBm	Through Hole	1 MB 96 kB
Digi XBRR-24Z8PS	I2C SPI UART	Integrated Trace	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	193 mA	DSSS	-103 dBm	85 °C	-40 °C	34-SMD Module	EFR32MG	14 mA	1.71 V	3.8 V	8 dBm	Surface Mount	1 MB 96 kB
Digi XBRR-24Z8UM	I2C SPI UART	Integrated Trace + U.FL	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	195 mA	DSSS	-103 dBm	85 °C	-40 °C	34-SMD Module	EFR32MG	14.5 mA	1.71 V	3.8 V	19 dBm	Surface Mount	1 MB 96 kB
Digi XBRR-24ACM	I2C SPI UART	Integrated Chip	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	193 mA	DSSS	-103 dBm	85 °C	-40 °C	34-SMD Module	EFR32MG	14 mA	1.71 V	3.8 V	8 dBm	Surface Mount	1 MB 96 kB
Digi XBRR-24Z8ST-J	I2C SPI UART	Antenna Not Included SMA	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	32 mA	DSSS	-103 dBm	85 °C	-40 °C	20-DIP Module	EFR32MG	14 mA	1.71 V	3.8 V	8 dBm	Through Hole	1 MB 96 kB
Digi XBRR-24Z8RM-R15	I2C SPI UART	Antenna Not Included Castellation	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	193 mA	DSSS	-103 dBm	85 °C	-40 °C	34-SMD Module	EFR32MG	14 mA	1.71 V	3.8 V	8 dBm	Surface Mount	1 MB 96 kB
Digi XBRR-24Z8US-J	I2C SPI UART	Integrated Trace + U.FL	Zigbee®	250 KBd	802.15.4 Bluetooth	2.4 GHz	32 mA	DSSS	-103 dBm	85 °C	-40 °C	34-SMD Module	EFR32MG	14 mA	1.71 V	3.8 V	8 dBm	Surface Mount	1 MB 96 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 22.38

Description

General part information

XBRR-24 Series

802.15.4, Bluetooth Zigbee® Transceiver Module 2.4GHz Integrated, Trace + U.FL Surface Mount
