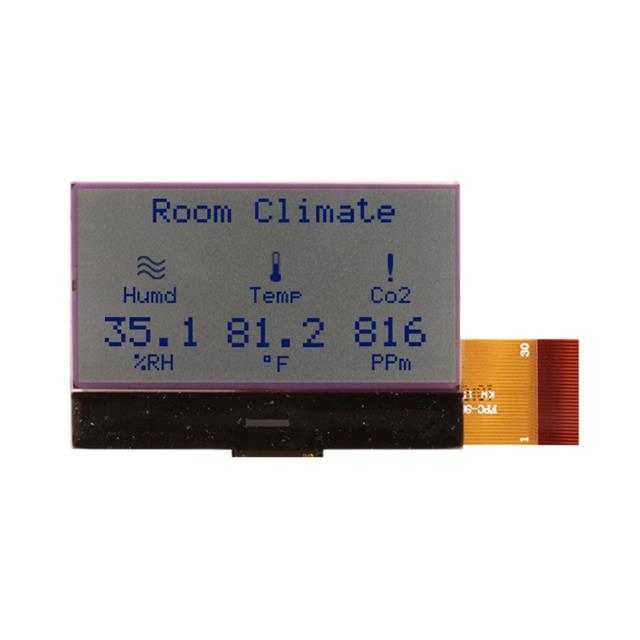

Specification	NHD-C12864GG-RN-GBW

Background Color	Gray
Background Color (Inverted)	Black
Backlight	Without Backlight
Controller Type	ST-7565R
Display Mode	Reflective
Display Type	STN - Super-Twisted Nematic
Dot Pitch Height	0.37 mm
Dot Pitch Width	0.37 mm
Dot Pixels (Horizontal)	128 pixels
Dot Pixels (Vertical)	64 pixels
Dot Size Height	0.35 mm
Dot Size Width	0.35 mm
Graphics Color	Gray - Inverted, Black
Interface	Parallel
Interface Data Width	8 Bit
Viewing Area Height	26.67 mm
Viewing Area Width	49.53 mm

NHD-C12864 Series

Part	Dot Size Width	Dot Size Height	Dot Pitch Width	Dot Pitch Height	Background Color	Background Color (Inverted)	Dot Pixels (Horizontal)	Dot Pixels (Vertical)	Graphics Color	Viewing Area Height	Viewing Area Width	Interface	Controller Type	Backlight Color	Backlight Type	Display Mode	Display Type	Backlight	Interface Data Width
Newhaven Display Intl NHD-C12864A1Z-FSB-FBW-HTT	0.48 mm	0.48 mm	0.52 mm	0.52 mm	Blue	Black	128 pixels	64 pixels	Black Blue - Inverted	38.8 mm	70.7 mm	SPI	ST-7565V	Blue	LED	Transflective	FSTN - Film Super-Twisted Nematic
Newhaven Display Intl NHD-C12864WC-FSW-FBW-3V3	0.36 mm	0.36 mm	0.4 mm	0.4 mm	White	Black	128 pixels	64 pixels	Black White - Inverted	28.8 mm	58 mm	Parallel/Serial	ST7565R	White	LED	Transflective	FSTN - Film Super-Twisted Nematic
Newhaven Display Intl NHD-C12864A1Z-FSW-FBW-HTT	0.48 mm	0.48 mm	0.52 mm	0.52 mm	White	Black	128 pixels	64 pixels	Black White - Inverted	38.8 mm	70.7 mm	SPI	ST-7565V	White	LED	Transflective	FSTN - Film Super-Twisted Nematic
Newhaven Display Intl NHD-C12864WM-09-FSW-FBW-3V3-M	0.36 mm	0.36 mm	0.36 mm	0.4 mm	White	Black	128 pixels	64 pixels	Black White - Inverted	28.8 mm	58 mm	Parallel/Serial		White	LED	Transflective	FSTN - Film Super-Twisted Nematic
Newhaven Display Intl NHD-C12864GG-RN-GBW	0.35 mm	0.35 mm	0.37 mm	0.37 mm	Gray	Black	128 pixels	64 pixels	Black Gray - Inverted	26.67 mm	49.53 mm	Parallel	ST-7565R			Reflective	STN - Super-Twisted Nematic	Without Backlight	8 Bit
Newhaven Display Intl NHD-C12864B2Z-RN-FBW	0.27 mm	0.27 mm	0.31 mm	0.31 mm	Gray	Black	128 pixels	64 pixels	Black Gray - Inverted	24 mm	44 mm	Parallel	ST-7565R			Reflective	FSTN - Film Super-Twisted Nematic	Without Backlight
Newhaven Display Intl NHD-C12864M1R-FSW-FTW-3V6	0.39 mm	0.39 mm	0.43 mm	0.43 mm	White	Black	128 pixels	64 pixels	Black White - Inverted	30.5 mm	59 mm	Parallel/Serial	SPLC-501C	White	LED	Transflective	FSTN - Film Super-Twisted Nematic
Newhaven Display Intl NHD-C12864CZ-FSW-GBW	0.42 mm	0.51 mm	0.46 mm	0.56 mm	Gray	Blue	128 pixels	64 pixels	Blue Gray - Inverted	40 mm	65.5 mm	Parallel/Serial		White	LED	Transflective	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-C12864WM-09-FSW-FBW-3V3	0.36 mm	0.36 mm	0.4 mm	0.4 mm	White	Black	128 pixels	64 pixels	Black White - Inverted	28.8 mm	58 mm	Parallel/Serial		White	LED	Transflective	FSTN - Film Super-Twisted Nematic
Newhaven Display Intl NHD-C12864HZ-FN-FBW	0.23 mm	0.29 mm	0.24 mm	0.3 mm	Gray	Black	128 pixels	64 pixels	Black Gray - Inverted	22.2 mm	33.8 mm	Parallel				Transflective	FSTN - Film Super-Twisted Nematic	Without Backlight	8 Bit
