100025510

Active

Telegartner Inc

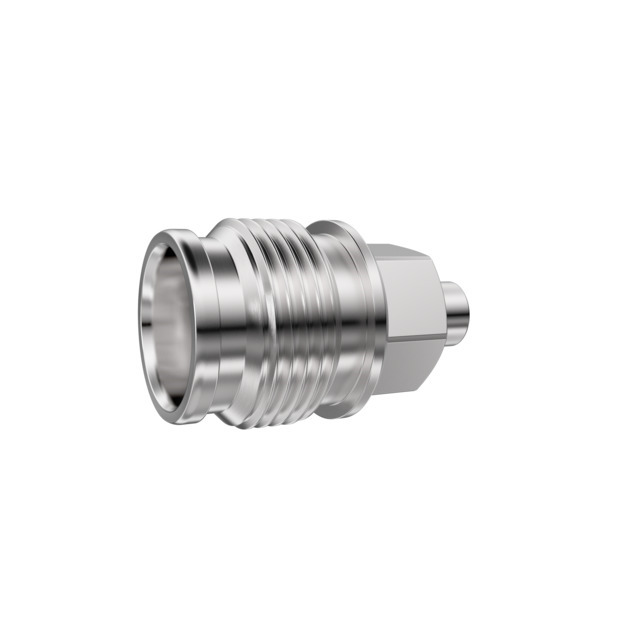

2.2-5 JCK STR SD/SD G11

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025510

Active

Telegartner Inc

2.2-5 JCK STR SD/SD G11

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025510	J01461A0 Series

Body Finish	Silver	Silver
Body Material	Copper Alloy	Copper Alloy
Cable Group	RG-405	RG-401, RG-405, RG-402
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Connector Style	2.2/5	2.2/5
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	-	Flange, Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	750 VDC	750 - 1000 VDC

J01461A0 Series

2.2-5 JCK STR FLNG SD/SD G9

Part	Frequency - Max [Max]	Connector Style	Center Contact Plating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Number of Ports	Impedance	Body Material	Center Contact Material	Body Finish	Cable Group	Contact Termination	Ingress Protection	Mounting Feature	Housing Color	Dielectric Material	Voltage Rating	Mounting Type
Telegartner Inc 100025513	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-401	Solder	IP68 - Dust Tight, Waterproof	Flange	Silver	Polytetrafluoroethylene (PTFE)	1000 VDC
Telegartner Inc 100025506	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-405	Solder	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Silver	Polytetrafluoroethylene (PTFE)	750 VDC
Telegartner Inc 100025510	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-405	Solder	IP68 - Dust Tight, Waterproof		Silver	Polytetrafluoroethylene (PTFE)	750 VDC	Free Hanging (In-Line)
Telegartner Inc 100025509	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-402	Solder	IP68 - Dust Tight, Waterproof		Silver	Polytetrafluoroethylene (PTFE)	1000 VDC	Free Hanging (In-Line)
Telegartner Inc 100025508	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-405	Solder	IP68 - Dust Tight, Waterproof	Flange	Silver	Polytetrafluoroethylene (PTFE)	750 VDC
Telegartner Inc 100025507	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-402	Solder	IP68 - Dust Tight, Waterproof	Flange	Silver	Polytetrafluoroethylene (PTFE)	1000 VDC
Telegartner Inc 100025512	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-401	Solder	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Silver	Polytetrafluoroethylene (PTFE)	1000 VDC
Telegartner Inc 100025511	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-401	Solder	IP68 - Dust Tight, Waterproof		Silver	Polytetrafluoroethylene (PTFE)	1000 VDC	Free Hanging (In-Line)
Telegartner Inc 100025505	6000 MHz	2.2/5	Silver	Female Socket, Jack	90 °C	-55 °C	Solder	1	50 Ohms	Copper Alloy	Beryllium Copper	Silver	RG-402	Solder	IP68 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Silver	Polytetrafluoroethylene (PTFE)	1000 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.39
		10	$ 15.98
		25	$ 14.78
		50	$ 13.14

Description

General part information

J01461A0 Series

2.2/5 Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
