E2-15-40-048-0

Active

Igus

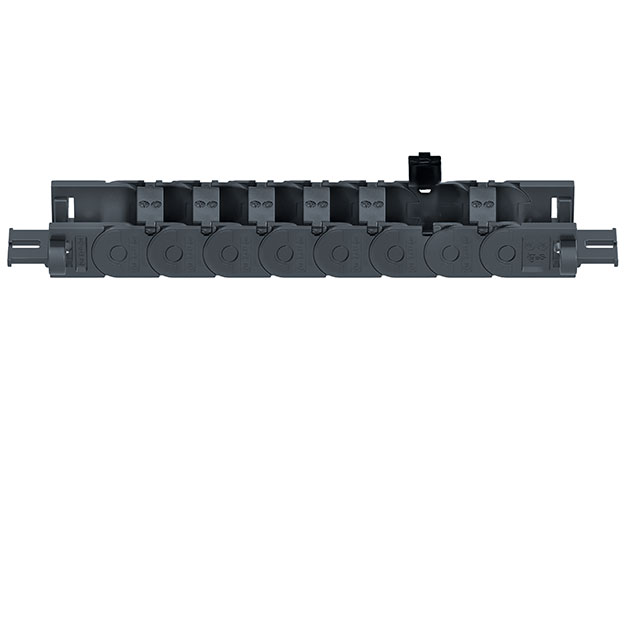

CABLE CARRIER .76H X 1.87W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .76H X 1.87W 1=1FT

Technical Specifications

Parameters and characteristics for this part

CABLE CARRIER .76H X 1.87W 1=1FT

Part	Loading Side	Operating Temperature [Min]	Operating Temperature [Max]	Frame Type	Link Pitch	Link Pitch	Outer Width	Outer Width	Outer Height	Outer Height	Material	Cavity Height [z]	Cavity Height [z]	Cavity Width [y]	Cavity Width [y]
Igus E2-15-40-048-0	Inside and Outside Bend	-40 °C	120 °C	Open	0.79 in	20.07 mm	1.87 in	47.5 mm	0.76 in	19.3 mm	Igumid G	0.57 in	14.48 mm	1.57 in	39.88 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .76H X 1.87W 1=1FT
