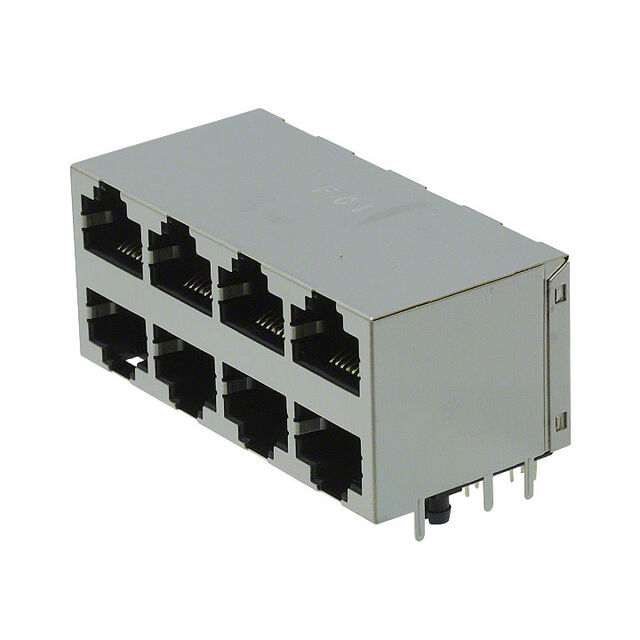

10118072-500A010LF

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	10118072-500A010LF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	8
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat3
Shielding	Shielded
Tab Direction	Up and Down
Termination	Solder

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	LED Color	Shielding	Contact Material	Number of Rows	Contact Finish Thickness	Ratings	Orientation	Number of Positions/Contacts	Number of Ports	Housing Material	Connector Type	Tab Direction
Amphenol ICC (FCI) 10118072-500A010LF	Through Hole	85 °C	-40 °C	Gold	Solder	Does Not Contain LED	Shielded	Copper Alloy	2	Flash	Cat3	90 °	8p8c (RJ45 Ethernet)	8	Thermoplastic	Jack	Up and Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat3
