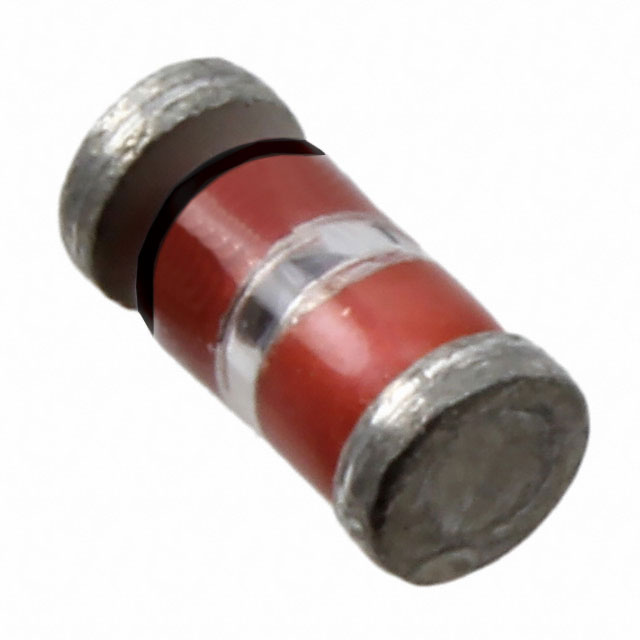

JANTX1N5311UR-1

Unknown

MACOM Technology Solutions

DIODE CUR REG 100V 3.96MA 500MW

Search across all available documentation for this part.

Unknown

MACOM Technology Solutions

DIODE CUR REG 100V 3.96MA 500MW

Technical Specifications

Parameters and characteristics for this part

Specification	JANTX1N5311UR-1

Grade	Military
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C
Package / Case	DO-213AB, MELF (Glass)
Power - Max [Max]	500 mW
Qualification	MIL-PRF-19500/463
Regulator Current (Max) [Max]	3.96 mA
Supplier Device Package	DO-213AB (MELF, LL41)
Voltage - Anode - Cathode (Vak)(Max) [Max]	100 V
Voltage - Limiting (Max) [Max]	2.5 V

DIODE CUR REG 100V 3.96MA 500MW

Part	Voltage - Limiting (Max) [Max]	Voltage - Anode - Cathode (Vak)(Max) [Max]	Supplier Device Package	Mounting Type	Qualification	Package / Case	Grade	Regulator Current (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]
MACOM Technology Solutions JANTX1N5311UR-1	2.5 V	100 V	DO-213AB (MELF, LL41)	Surface Mount	MIL-PRF-19500/463	DO-213AB, MELF (Glass)	Military	3.96 mA	175 ░C	-65 °C	500 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIODE CUR REG 100V 3.96MA 500MW

Technical documentation and resources
