Technical Specifications
Parameters and characteristics for this part
| Specification | TS110-8UF |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 100 µA |
| Current - Hold (Ih) (Max) [Max] | 12 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20 A, 21 A |
| Current - On State (It (AV)) (Max) [Max] | 800 mA |
| Current - On State (It (RMS)) (Max) | 1.25 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

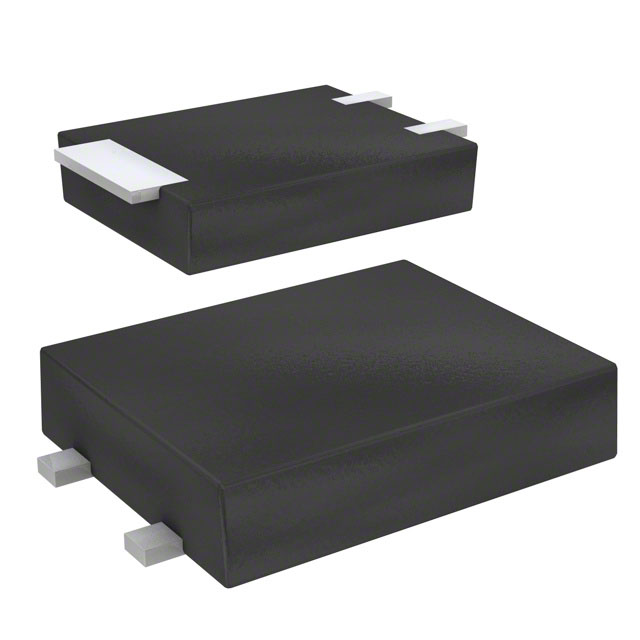

| Package / Case | SMB Flat Leads, DO-221AA |
| SCR Type | Sensitive Gate |
| Supplier Device Package | SMBflat-3L |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 800 mV |
| Voltage - Off State | 800 V |
| Voltage - On State (Vtm) (Max) [Max] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TS110-8 Series
Thanks to highly sensitive triggering levels, the TS110-8 series is suitable for circuit breaker applications where the available gate current is limited.
The 1250 V direct surge voltage capability of the TS110-8 enables high robustness of the whole circuit breaker. The low leakage current of the TS110-8 reduces power consumption over the entire lifetime of the circuit breaker. The high off-state immunity (200 V/μs) insures the non tripping of the breaker in case of electrical fast transient (EFT) on the mains.
The TS110-8 is available in through-hole TO-92 package with GAK and KGA pinout and in SMBflat-3L.
