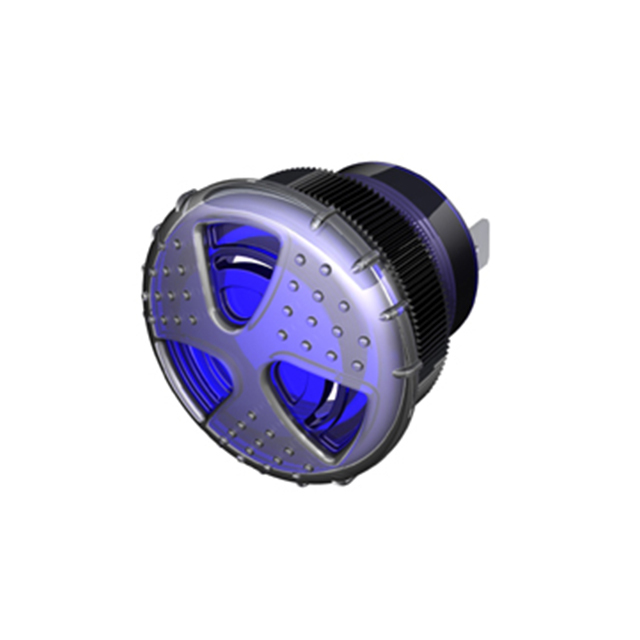

TUHT-V88B-930-Q

Active

Floyd Bell Inc

BUZZER 35.81MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER 35.81MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	TUHT-V88B-930-Q

Approval Agency	UR, UL
Current - Supply [Max]	125 mA
Current - Supply [Min]	65 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	3 kHz
Height - Seated (Max)	31.75 mm
Height - Seated (Max) [Max]	1.25 in
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Staccato Tone
Port Location	Top
Size / Dimension [diameter]	1.41 in
Size / Dimension [diameter]	35.81 mm
Sound Pressure Level (SPL)	103 dB
Termination	Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V
Voltage Range [Min]	9 V

BUZZER 35.81MM PNL MNT

Part	Driver Circuitry	Approval Agency	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Frequency	Voltage Range [Min]	Voltage Range [Max]	Operating Mode	Height - Seated (Max)	Height - Seated (Max) [Max]	Sound Pressure Level (SPL)	Current - Supply [Max]	Current - Supply [Min]	Ingress Protection	Input Type
Floyd Bell Inc TUHT-V88B-930-Q	Indicator, Internally Driven	UL, UR	Quick Connect Tab - 0.250" (6.35mm)	1.41 in	35.81 mm	Top	3 kHz	9 V	30 V	Staccato Tone	31.75 mm	1.25 in	103 dB	125 mA	65 mA	IP68 - Dust Tight, Waterproof	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.14

General part information

Buzzers Indicator, Internally Driven 65 ~ 125mA 3kHz 103dB @ 30V, 61cm Panel Mount Quick Connect Tab - 0.250" (6.35mm)
