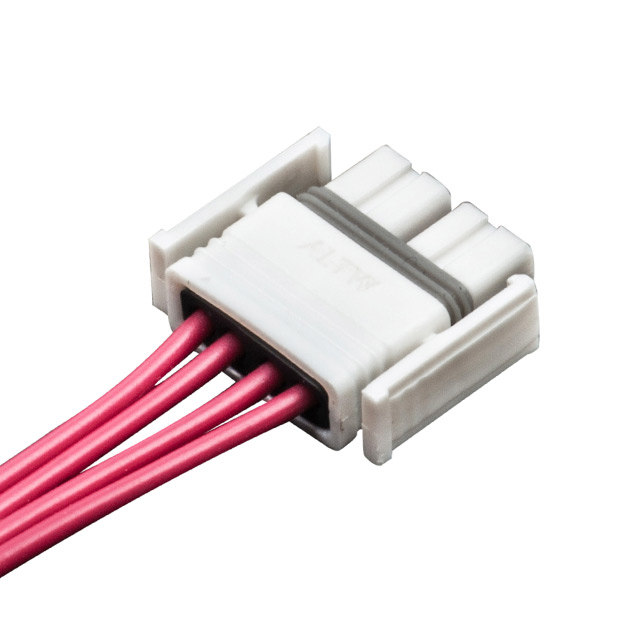

SSL12-P4LP0-M20A04
ActiveAmphenol LTW
SSL1.2 WIRE ASSEMBLY,5A 4PIN, PL
Deep-Dive with AI
Search across all available documentation for this part.
SSL12-P4LP0-M20A04
ActiveAmphenol LTW
SSL1.2 WIRE ASSEMBLY,5A 4PIN, PL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSL12-P4LP0-M20A04 |
|---|---|
| 1st Connector | Plug |
| 1st Connector | 4 Position |
| 2nd Connector | Wire Leads |
| Color | Multiple |
| Features | Latch Lock, Industrial Environments - IP68 |
| Length | 400 mm |
| Length | 15.7 in |
SSL12 Series
| Part | Color | 2nd Connector | Length [x] | Length [x] | Features | 1st Connector | 1st Connector | Number of Positions | Style | Housing Color | Fastening Type | Connector Type | Mating Cycles | Voltage Rating | Wire Gauge [Min] | Wire Gauge [Max] | Ingress Protection | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Housing Material | Length | Length | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | White | Wire Leads | 1 m | 39.4 in | Industrial Environments - IP68 Latch Lock | Plug | 4 Position | ||||||||||||||||||||
Amphenol LTW | 4 | Cable/Wire to Cable/Wire or Board | White | Latch Lock | Plug Housing for Socket Contact | 30 | 250 VDC | 20 AWG | 22 AWG | IP68 - Dust Tight Waterproof | 5 A | Free Hanging (In-Line) | -40 °C | 105 ░C | Crimp | Thermoplastic | |||||||||||
Amphenol LTW | Brown Red | Wire Leads | Latch Lock | Plug | 2 | 400 mm | 15.7 in | ||||||||||||||||||||
Amphenol LTW | Brown Red | Wire Leads | Latch Lock | Socket | 2 | 400 mm | 15.7 in | ||||||||||||||||||||
Amphenol LTW | Brown Red | Wire Leads | Industrial Environments - IP68 | Socket | 2 | 100 mm | 3.94 in | ||||||||||||||||||||
Amphenol LTW | Pick and Place Solder Retention | 4 | Board to Board Cable | Natural | Detent Lock | Jack Housing for Pin Contact | 250 VDC | IP68 | 5 A | Surface Mount | -40 °C | 105 ░C | Solder | Thermoplastic | Gold | Copper Alloy | |||||||||||
Amphenol LTW | 4 | Cable/Wire to Cable/Wire | White | Locking Ramp | Jack Housing for Pin Contact | 30 | 250 VDC | 20 AWG | 22 AWG | IP68 - Dust Tight Waterproof | 5 A | Free Hanging (In-Line) | -40 °C | 105 ░C | Crimp | Thermoplastic | |||||||||||
Amphenol LTW | Multiple | Wire Leads | Industrial Environments - IP68 Latch Lock | Plug | 4 Position | 400 mm | 15.7 in | ||||||||||||||||||||
Amphenol LTW | Black | Wire Leads | 1 m | 39.4 in | Industrial Environments - IP68 Latch Lock | Plug | 2 | ||||||||||||||||||||
Amphenol LTW | Black | Wire Leads | 1 m | 39.4 in | Industrial Environments - IP68 | Socket | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.81 | |
| 10 | $ 1.57 | |||
| 25 | $ 1.50 | |||
| 50 | $ 1.47 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.18 | |||
Description
General part information
SSL12 Series
SSL Cable Assembly Plug, 4 Position To Wire Leads Multiple 15.7" (400.0mm)
Documents
Technical documentation and resources
No documents available
