9272 006100

Active

Belden Inc.

CABLE TWINAXIAL 20AWG 78 OHM

Search across all available documentation for this part.

Active

Belden Inc.

CABLE TWINAXIAL 20AWG 78 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	9272 006100

Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	28 AWG
Impedance	78 Ohms
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length [x]	100 ft
Length [x]	30.48 m
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage [custom]	93 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	20 AWG

Part	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length	Length	Wire Gauge	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Impedance	Shield Type	Shield Coverage [custom]	Shield Material	Length [x]	Length [x]
Belden Inc. 9272 006U500	Twinaxial	6.2 mm	0.244 in	Copper Tinned	152.4 m	6000 in	20 AWG	Blue	-20 C	60 °C	7	28 AWG	Poly-Vinyl Chloride (PVC)	78 Ohms	Braid	93 %	Copper Tinned
Belden Inc. 9272 006100	Twinaxial	6.2 mm	0.244 in	Copper Tinned			20 AWG	Blue	-20 C	60 °C	7	28 AWG	Poly-Vinyl Chloride (PVC)	78 Ohms	Braid	93 %	Copper Tinned	100 ft	30.48 m
Belden Inc. 9272 006500	Twinaxial	6.2 mm	0.244 in	Copper Tinned	152.4 m	6000 in	20 AWG	Blue	-20 C	60 °C	7	28 AWG	Poly-Vinyl Chloride (PVC)	78 Ohms	Braid	93 %	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

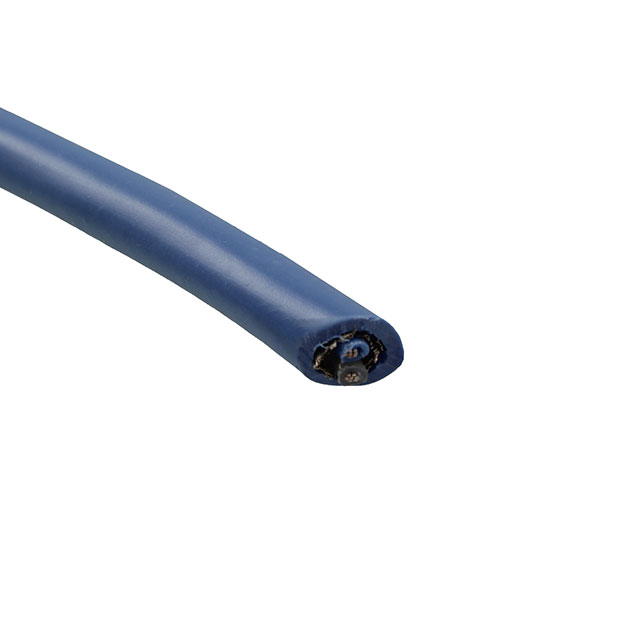

Twinaxial Cable 20 AWG 100.0' (30.48m) 78 Ohms
