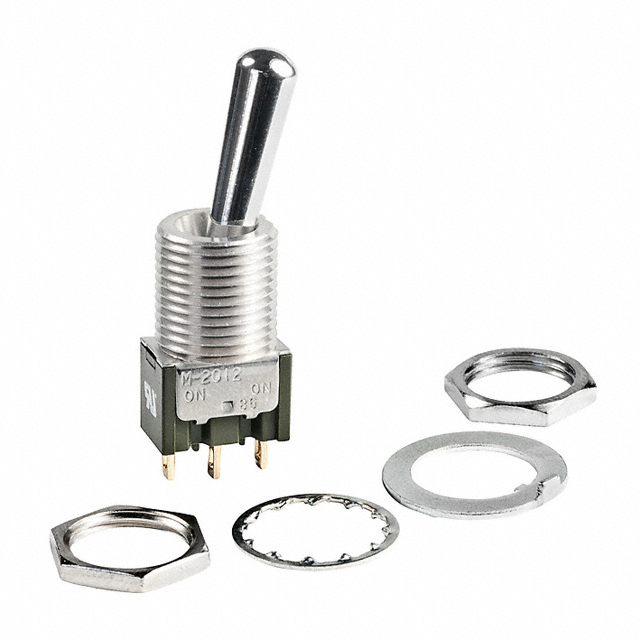

M2012B2B1G01/U

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M Series Bushing Mnt Mini Toggle Datasheet

M2012B2B1G01/U

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet M Series Bushing Mnt Mini Toggle Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012B2B1G01/U

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2012B2 Series

Part	Voltage Rating - DC	Illumination	Voltage Rating - AC	Actuator Material	Switch Function	Termination Style	Current Rating (Amps)	Actuator Length [x]	Features	Panel Cutout Dimensions [diameter]	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Circuit	Bushing Thread	Bushing Thread	Ingress Protection
NKK Switches M2012B2B1W01-VA	30 V	Non-Illuminated	125 V	Brass Chrome Plated	On-On	Solder Lug	4 A 6 A	17.5 mm	Black Cap	12.5 mm	25000 Steps	-30 ░C	85 °C	Standard Round with Cap	SPDT	M12	1 x 1
NKK Switches M2012B2B1W03-VF	30 V	Non-Illuminated	125 V	Brass Chrome Plated	On-On	PC Pin	4 A 6 A	17.5 mm	Green Cap	12.5 mm	25000 Steps	-30 ░C	85 °C	Standard Round with Cap	SPDT	M12	1 x 1
NKK Switches M2012B2B1G01	28 V	Non-Illuminated	28 V	Brass Chrome Plated	On-On	Solder Lug	0.4 VA	17.5 mm	Epoxy Sealed Terminals	12.5 mm	50000 Cycles	-30 ░C	85 °C	Standard Round	SPDT	M12	1 x 1
NKK Switches M2012B2B1W03	30 V	Non-Illuminated	125 V	Brass Chrome Plated	On-On	PC Pin	4 A 6 A	17.5 mm	Epoxy Sealed Terminals	12.5 mm	25000 Steps	-30 ░C	85 °C	Standard Round	SPDT	M12	1 x 1
NKK Switches M2012B2B1G01/U	28 V	Non-Illuminated	28 V	Brass Chrome Plated	On-On	Solder Lug	0.4 VA	17.5 mm	Epoxy Sealed Terminals	12.5 mm	50000 Cycles	-30 ░C	85 °C	Standard Round	SPDT	M12	1 x 1
NKK Switches M2012B2B3W01-VA	30 V	Non-Illuminated	125 V	Brass Chrome Plated	On-On	Solder Lug	4 A 6 A	18.5 mm	Black Cap	12.5 mm	25000 Steps	-30 ░C	85 °C	Standard Round with Cap	SPDT	M12	1 x 1	IP67 - Dust Tight Waterproof
NKK Switches M2012B2B1W03-VF-AT4181	30 V	Non-Illuminated	125 V	Brass Chrome Plated	On-On	PC Pin	4 A 6 A	17.5 mm		12.5 mm	25000 Steps	-30 ░C	85 °C	Standard Round with Cap	SPDT	M12	1 x 1
NKK Switches M2012B2B1G03	28 V	Non-Illuminated	28 V	Brass Chrome Plated	On-On	PC Pin	0.4 VA	17.5 mm	Epoxy Sealed Terminals	12.5 mm	50000 Cycles	-30 ░C	85 °C	Standard Round	SPDT	M12	1 x 1
NKK Switches M2012B2B1G03-AT4181	28 V	Non-Illuminated	28 V	Brass Chrome Plated	On-On	PC Pin	0.4 VA	17.5 mm		12.5 mm	50000 Cycles	-30 ░C	85 °C	Standard Round	SPDT	M12	1 x 1
NKK Switches M2012B2B1W03-AT4181	30 V	Non-Illuminated	125 V	Brass Chrome Plated	On-On	PC Pin	4 A 6 A	17.5 mm		12.5 mm	25000 Steps	-30 ░C	85 °C	Standard Round	SPDT	M12	1 x 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.34
		10	$ 8.41

Description

General part information

M2012B2 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

M Series Bushing Mnt Mini Toggle Datasheet
