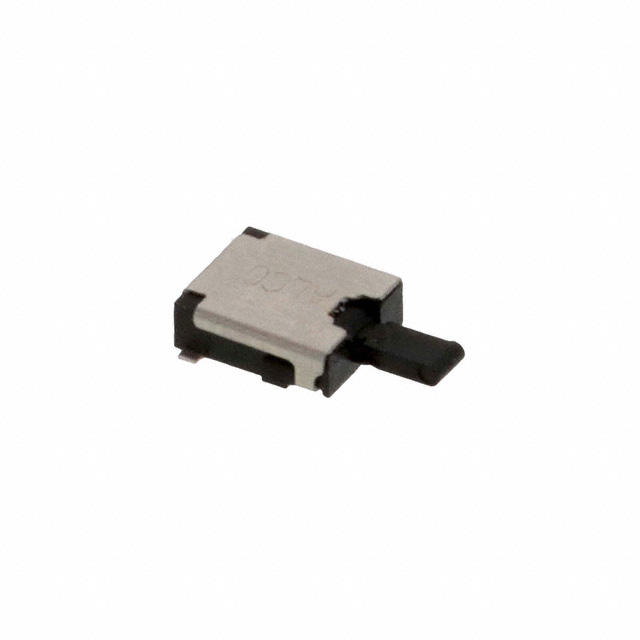

JJDVUUG305NONMRTR

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECTOR SPST-NO 0.01A 5V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECTOR SPST-NO 0.01A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Switch Function	Features	Electrical Life	Circuit	Pretravel	Pretravel	Operating Force	Actuator Type	Operating Position [x]	Operating Position [x]	Termination Style
TE Connectivity Raychem Cable Protection JJDVUUJ305NOPMRTR	5 V	-10 °C	60 °C	Surface Mount	10 mA	Off-Mom	Board Guide	50000 Cycles	SPST-NO	1.45 mm	0.057 in	40 gf	Angled Toggle (Detector)	0.063 in	1.6 mm	J Lead
TE Connectivity Raychem Cable Protection JJDVUUG305NONMRTR	5 V	-10 °C	60 °C	Surface Mount	10 mA	Off-Mom		50000 Cycles	SPST-NO	1.45 mm	0.057 in	40 gf	Angled Toggle (Detector)	0.063 in	1.6 mm	Gull Wing
TE Connectivity Raychem Cable Protection JJDVUUG305NOPMRTR	5 V	-10 °C	60 °C	Surface Mount	10 mA	Off-Mom	Board Guide	50000 Cycles	SPST-NO	1.45 mm	0.057 in	40 gf	Angled Toggle (Detector)	0.063 in	1.6 mm	Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Surface Mount
