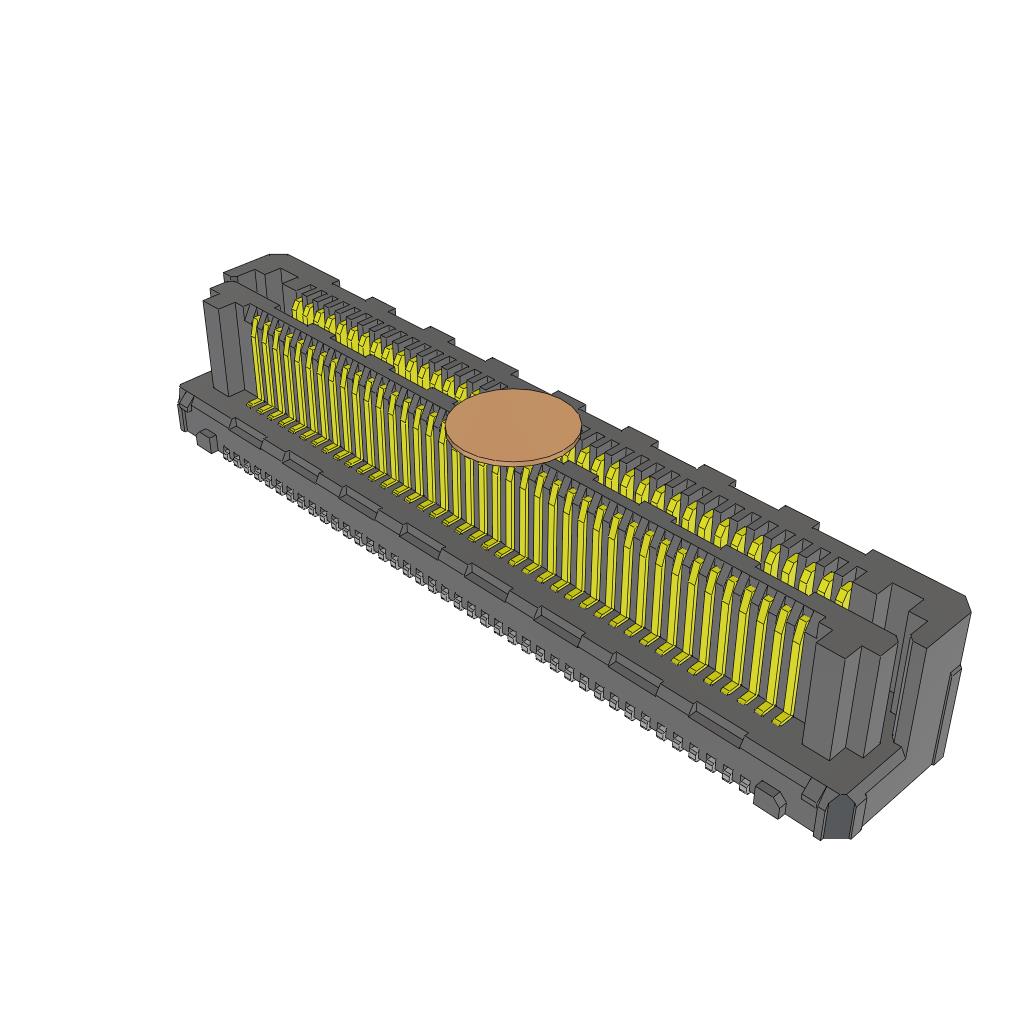

LSHM-140-03.0-F-DV-A-N-K-TR

Active

Samtec Inc.

CONN SOCKET AND TERMINAL STRIP HDR/SKT 80 POS 0.5MM SOLDER ST TOP ENTRY SMD RAZOR BEAM™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding LSHM Datasheet +3

LSHM-140-03.0-F-DV-A-N-K-TR

Active

Samtec Inc.

CONN SOCKET AND TERMINAL STRIP HDR/SKT 80 POS 0.5MM SOLDER ST TOP ENTRY SMD RAZOR BEAM™ T/R

Deep-Dive with AI

Documents0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding LSHM Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSHM-140-03.0-F-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.175 in
Height Above Board	4.45 mm
Mated Stacking Heights	6 mm, 9 mm, 5.5 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

LSHM-140 Series

Part	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Height Above Board	Height Above Board	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. LSHM-140-01-F-RH-A-N-K-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide Pick and Place	0.202 in	5.13 mm	80	3 Áin	0.076 Ám
Samtec Inc. LSHM-140-04.0-L-DV-A-N	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide		0.215 in	80	10 Áin	0.25 Ám	Surface Mount	5.46 mm	6.5 mm 7 mm 8 mm 10 mm
Samtec Inc. LSHM-140-03.0-F-DV-A-N-K-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide Pick and Place	0.175 in	4.45 mm	80	3 Áin	0.076 Ám	Surface Mount		5.5 mm 6 mm 7 mm 9 mm
Samtec Inc. LSHM-140-03.0-F-DV-A-S-K-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide Pick and Place Shielded	0.175 in	4.45 mm	80	3 Áin	0.076 Ám	Surface Mount		5.5 mm 6 mm 7 mm 9 mm
Samtec Inc. LSHM-140-06.0-F-DV-A-S-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide Shielded			80	3 Áin	0.076 Ám	Surface Mount		8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in
Samtec Inc. LSHM-140-03.0-L-DV-A-S-K-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide Pick and Place Shielded	0.175 in	4.45 mm	80	10 Áin	0.25 Ám	Surface Mount		5.5 mm 6 mm 7 mm 9 mm
Samtec Inc. LSHM-140-03.0-L-DV-A-S-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide Shielded	0.175 in	4.45 mm	80	10 Áin	0.25 Ám	Surface Mount		5.5 mm 6 mm 7 mm 9 mm
Samtec Inc. LSHM-140-03.0-L-DV-A-N	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide	0.175 in	4.45 mm	80	10 Áin	0.25 Ám	Surface Mount		5.5 mm 6 mm 7 mm 9 mm
Samtec Inc. LSHM-140-03.0-L-DV-A-N-K-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide Pick and Place	0.175 in	4.45 mm	80	10 Áin	0.25 Ám	Surface Mount		5.5 mm 6 mm 7 mm 9 mm
Samtec Inc. LSHM-140-L2.5-L-DV-A-N-TR	Gold	Self Mating Non-Gendered Hermaphroditic	0.5 mm	0.02 in	2	Board Guide			80	10 Áin	0.25 Ám	Surface Mount		5 mm 5.5 mm 6.5 mm 8.5 mm	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	575	$ 3.94

Description

General part information

LSHM-140 Series

80 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
