796276-2

Active

TE Connectivity AMP Connectors

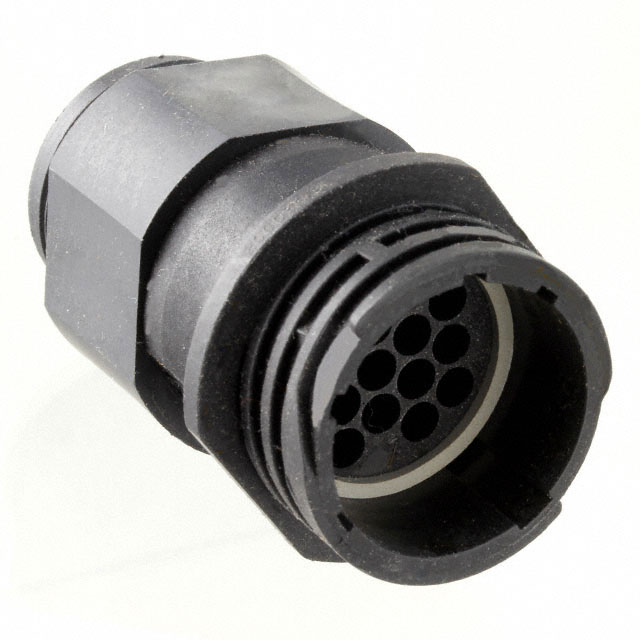

CONN RCPT HSG MALE 16POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG MALE 16POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796276-2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	16
Shell Size - Insert [Min]	17
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSG MALE 16POS INLINE

Part	Mounting Type	Contact Type	Material Flammability Rating	Ingress Protection	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Note	Orientation	Features	Contact Shape	Number of Positions	Contact Size	Type	Housing Color	Shielding	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type
TE Connectivity AMP Connectors 796276-2	Free Hanging (In-Line)	Crimp	UL94 V-0	IP67 - Dust Tight, Waterproof	17	16	Contacts Not Included	Keyed	Backshell	Circular	16	16	For Male Pins	Black	Unshielded	Thermoplastic	105 ░C	-55 °C	Receptacle Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 51.39

General part information

16 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
