Q-2B02B00130.5M

Active

Amphenol Custom Cable

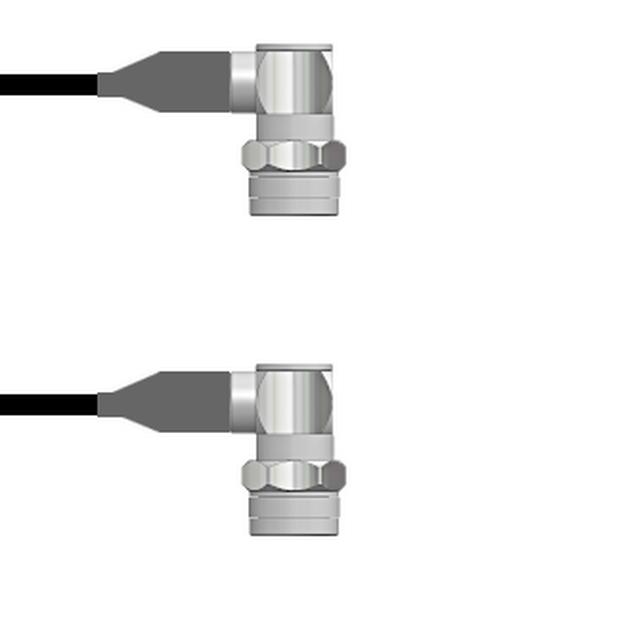

COAX CBL N-TYPE TO N-TYPE 19.6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2B02B00130.5M

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO N-TYPE 19.6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2B02B00130.5M

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2B02B0 Series

Part	Cable Type	2nd Connector	Color	1st Connector Mounting Type	2nd Contact Gender	1st Connector	Length [x]	Length [x]	Frequency - Max [Max]	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	Features	Style	Length	Length	Length
Amphenol Custom Cable Q-2B02B0013.25M	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle	9.843 "	250 mm	6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type
Amphenol Custom Cable Q-2B02B0013072i	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-2B02B0013003M	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-2B02B0013001M	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type	3.3 ft	39.4 in	1 m
Amphenol Custom Cable Q-2B02B0013002M	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-2B02B00132.5M	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-2B02B00130.5M	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type		19.69 "	50 cm
Amphenol Custom Cable Q-2B02B0013012i	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type		12 "	304.8 mm
Amphenol Custom Cable Q-2B02B0013.75M	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type		29.53 "	750 mm
Amphenol Custom Cable Q-2B02B0013108i	LMR 400	N-Type Plug Right Angle	Black	Free Hanging (In-Line)	Male	N-Type Plug Right Angle			6000 MHz	Male	Free Hanging (In-Line)	50 Ohms	Shielded	N-Type to N-Type	9 ft	108 in	2.7 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 197.07
		25	$ 193.37
		50	$ 189.67
		100	$ 185.97
		250	$ 182.27

Description

General part information

Q-2B02B0 Series

Cable Assembly Coaxial N-Type to N-Type LMR 400 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
