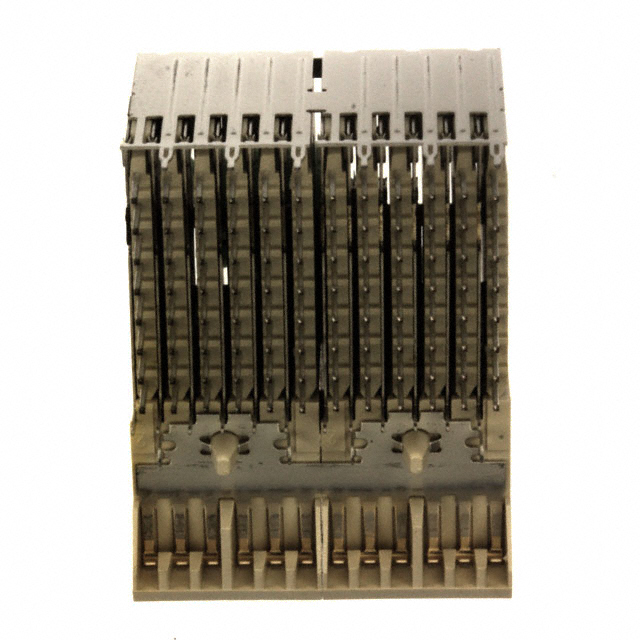

10041744-102LF

Active

Amphenol ICC (FCI)

CONN RCPT HI SPEED 108P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HI SPEED 108P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10041744-102LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	96
Contact Layout, Typical [custom]	12
Features	Board Guide, Shielded, Spacer
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	108
Number of Positions Loaded	All
Number of Rows	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Connector Type	Number of Positions Loaded	Mounting Type	Termination	Contact Finish	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Style	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Number of Rows
Amphenol ICC (FCI) 10041744-102LF	Receptacle Female Sockets	All	Board Edge Right Angle Through Hole	Press-Fit	Gold or Gold GXT™	96	12	UL94 V-0	105 ░C	-55 °C	Natural	High Speed	0.079 in	2 mm	0.76 Ám	30 Áin	108	Board Guide Shielded Spacer	8
Amphenol ICC (FCI) 10041744-302LF	Receptacle Female Sockets	All	Board Edge Right Angle Through Hole	Press-Fit	Gold or Gold GXT™	96	12	UL94 V-0	105 ░C	-55 °C	Natural	High Speed	0.079 in	2 mm			108	Board Guide Shielded Spacer	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

108 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
