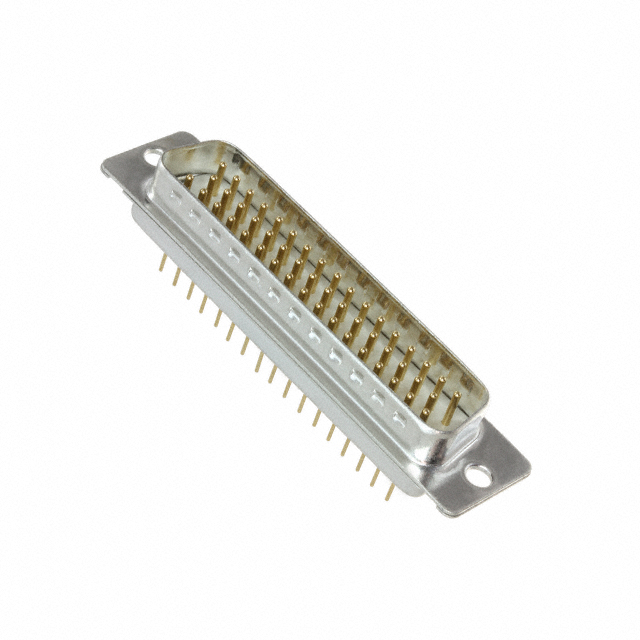

163A11159X

Active

Amphenol CONEC

CONN D-SUB PLUG 50POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

163A11159X

Active

Amphenol CONEC

CONN D-SUB PLUG 50POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A11159X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	125 VDC

163A111 Series

Part	Voltage Rating	Contact Finish	Contact Type	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Connector Type	Color	Features	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Number of Positions	Termination	Contact Finish Thickness	Shell Size, Connector Layout	Wire Gauge	Shell Size, Connector Layout
Amphenol CONEC 163A11169X	125 VDC	Gold	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	-55 °C	125 °C	UL94 V-0	7.5 A	Male Pins Plug	Black	Grounding Indents	Housing/Shell (Unthreaded)	8 çin	0.203 çm	Copper Alloy	D-Sub	DE E	1	2	9	Wire Wrap
Amphenol CONEC 163A11159X	125 VDC	Gold	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	-55 °C	125 °C	UL94 V-0	7.5 A	Male Pins Plug	Black	Grounding Indents	Housing/Shell (Unthreaded)			Copper Alloy	D-Sub			3	50	Solder	Flash	5
Amphenol CONEC 163A11109X	125 VDC	Gold	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	-55 °C	125 °C	UL94 V-0	7.5 A	Male Pins Plug	Black	Grounding Indents	Housing/Shell (Unthreaded)	8 çin	0.203 çm	Copper Alloy	D-Sub			3	50			5	20 AWG
Amphenol CONEC 163A11179X	125 VDC	Gold	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	-55 °C	125 °C	UL94 V-0	7.5 A	Male Pins Plug	Black	Grounding Indents	Housing/Shell (Unthreaded)	8 çin	0.203 çm	Copper Alloy	D-Sub			2	15	Wire Wrap		2
Amphenol CONEC 163A11139X	125 VDC	Gold	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	-55 °C	125 °C	UL94 V-0	7.5 A	Male Pins Plug	Black	Grounding Indents	Housing/Shell (Unthreaded)			Copper Alloy	D-Sub	B DB	3	2		Solder	Flash
Amphenol CONEC 163A11199X	125 VDC	Gold	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole	-55 °C	125 °C	UL94 V-0	7.5 A	Male Pins Plug	Black	Grounding Indents	Housing/Shell (Unthreaded)	8 çin	0.203 çm	Copper Alloy	D-Sub			2	37	Wire Wrap				4 (DC C)
Amphenol CONEC 163A11149X	125 VDC	Gold	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	-55 °C	125 °C	UL94 V-0	7.5 A	Male Pins Plug	Black	Grounding Indents	Housing/Shell (Unthreaded)			Copper Alloy	D-Sub			2	37	Solder	Flash			4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.73
		10	$ 13.94
		25	$ 13.41
		50	$ 12.87
		100	$ 12.16
		250	$ 11.08
		500	$ 10.37
		1000	$ 9.51

Description

General part information

163A111 Series

50 Position D-Sub Plug, Male Pins Connector
