AER43-43-23CB/A01

Active

CTS Thermal Management Products

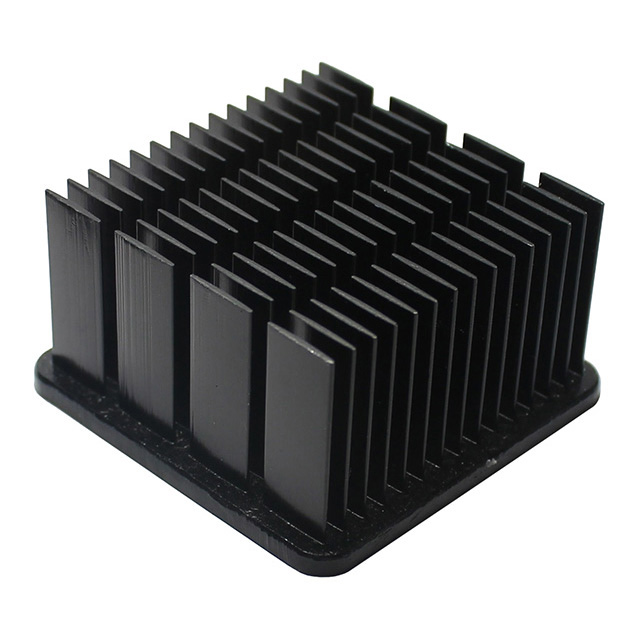

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA01 Laminating Adhesive Datasheet

AER43-43-23CB/A01

Active

CTS Thermal Management Products

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

DocumentsA01 Laminating Adhesive Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 7.33

Description

General part information

AER43 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Documents

Technical documentation and resources

A01 Laminating Adhesive

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AER43-43-23CB/A01	AER43 Series

Attachment Method	Thermal Tape, Adhesive (Included)	Thermal Tape, Adhesive (Included)
Fin Height	22.61 mm	22.61 - 32.6 mm
Fin Height	0.89 in	0.89 - 1.283 "
Fin Height	-	14.6 - 27.6 mm
Fin Height	-	0.575 - 1.087 in
Length [x]	42.1 mm	42.1 mm
Length [x]	1.657 "	1.657 "
Material	Aluminum Alloy	Aluminum Alloy
Material Finish	Black Anodized	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins
Shelf Life	24 Months	24 Months
Thermal Resistance @ Forced Air Flow	200 LFM, 1.92 °C/W	1.42 - 200 LFM
Thermal Resistance @ Natural	8.07 °C/W	6.87 - 9.57 °C/W
Type	Top Mount	Top Mount
Width [x]	1.657 in	1.657 in
Width [x]	42.1 mm	42.1 mm

AER43 Series

HEATSINK FORGED BLK ANO TOP MNT

Part	Length [x]	Length [x]	Material Finish	Type	Material	Width [x]	Width [x]	Shape	Attachment Method	Package Cooled	Thermal Resistance @ Natural	Shelf Life	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Fin Height	Fin Height
CTS Thermal Management Products AER43-43-18CB/A01	42.1 mm	1.657 "	Black Anodized	Top Mount	Aluminum Alloy	1.657 in	42.1 mm	Fins, Square	Thermal Tape, Adhesive (Included)	ASIC, BGA, CPU, LGA	8.57 °C/W	24 Months	2.32 °C/W, 200 LFM
CTS Thermal Management Products AER43-43-28CB/A01	42.1 mm	1.657 "	Black Anodized	Top Mount	Aluminum Alloy	1.657 in	42.1 mm	Fins, Square	Thermal Tape, Adhesive (Included)	ASIC, BGA, CPU, LGA	7.47 °C/W	24 Months	1.62 °C/W, 200 LFM	27.6 mm	1.087 in
CTS Thermal Management Products AER43-43-15CB/A01	42.1 mm	1.657 "	Black Anodized	Top Mount	Aluminum Alloy	1.657 in	42.1 mm	Fins, Square	Thermal Tape, Adhesive (Included)	ASIC, BGA, CPU, LGA	9.07 °C/W	24 Months	2.52 °C/W, 200 LFM	14.6 mm	0.575 in
CTS Thermal Management Products AER43-43-33CB/A01	42.1 mm	1.657 "	Black Anodized	Top Mount	Aluminum Alloy	1.657 in	42.1 mm	Fins, Square	Thermal Tape, Adhesive (Included)	ASIC, BGA, CPU, LGA	6.87 °C/W	24 Months	1.42 °C/W, 200 LFM			1.283 "	32.6 mm
CTS Thermal Management Products AER43-43-21CB/A01	42.1 mm	1.657 "	Black Anodized	Top Mount	Aluminum Alloy	1.657 in	42.1 mm	Fins, Square	Thermal Tape, Adhesive (Included)	ASIC, BGA, CPU, LGA	8.27 °C/W	24 Months	2.02 °C/W	20.6 mm	0.811 in
CTS Thermal Management Products AER43-43-23CB/A01	42.1 mm	1.657 "	Black Anodized	Top Mount	Aluminum Alloy	1.657 in	42.1 mm	Fins, Square	Thermal Tape, Adhesive (Included)	ASIC, BGA, CPU, LGA	8.07 °C/W	24 Months	1.92 °C/W, 200 LFM			0.89 in	22.61 mm
CTS Thermal Management Products AER43-43-12CB/A01	42.1 mm	1.657 "	Black Anodized	Top Mount	Aluminum Alloy	1.657 in	42.1 mm	Fins, Square	Thermal Tape, Adhesive (Included)	ASIC, BGA, CPU, LGA	9.57 °C/W	24 Months	2.82 °C/W
