EM3780-8-2

Active

Pomona Electronics

MINI HOOK TO WIRE LEADS 8"

Search across all available documentation for this part.

Active

Pomona Electronics

MINI HOOK TO WIRE LEADS 8"

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Temperature Range	Temperature Range	1st Connector	2nd Connector	Contents [custom]	Contents	Cable Length	Cable Length	Voltage - Rated [custom]	Wire Gauge	Material - Insulation	Configuration
Pomona Electronics EM3780-8-2	5 A	216 °F	102 °C	Mini Hook	Wire Leads	1	Red	8 "	203.2 mm	30 VAC 60 VDC	20 AWG	Poly-Vinyl Chloride (PVC)	Grabber Hook to Wire Leads
Pomona Electronics EM3780-24-2#	5 A	216 °F	102 °C	Mini Hook	Wire Leads	1	Red	24 "	609.6 mm	30 VAC 60 VDC	20 AWG	Poly-Vinyl Chloride (PVC)	Grabber Hook to Wire Leads
Pomona Electronics EM3780-12-0#	5 A	216 °F	102 °C	Mini Hook	Wire Leads		1 Lead Black	12 in	304.8 mm	30 VAC 60 VDC	20 AWG	Poly-Vinyl Chloride (PVC)	Grabber Hook to Wire Leads
Pomona Electronics EM3780-8-0	5 A	216 °F	102 °C	Mini Hook	Wire Leads		1 Lead Black	8 "	203.2 mm	30 VAC 60 VDC	20 AWG	Poly-Vinyl Chloride (PVC)	Grabber Hook to Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

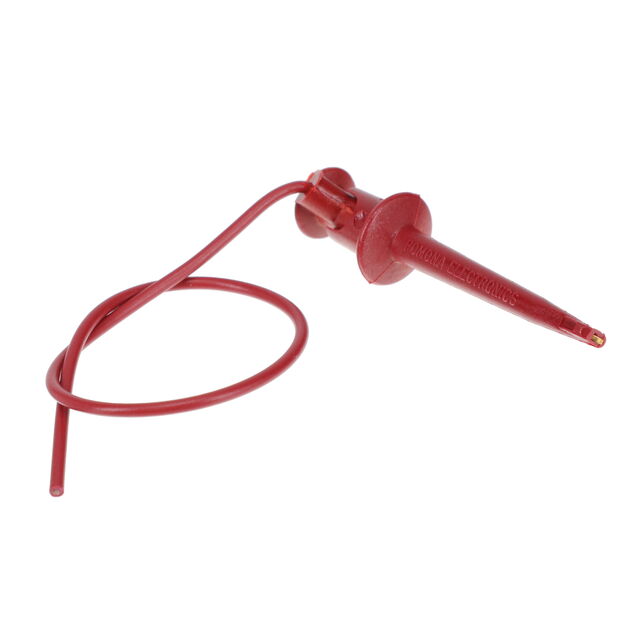

8.0" (203.20mm) Mini Hook To Wire Leads Test Lead 30VAC, 60VDC 1 Lead, Red
