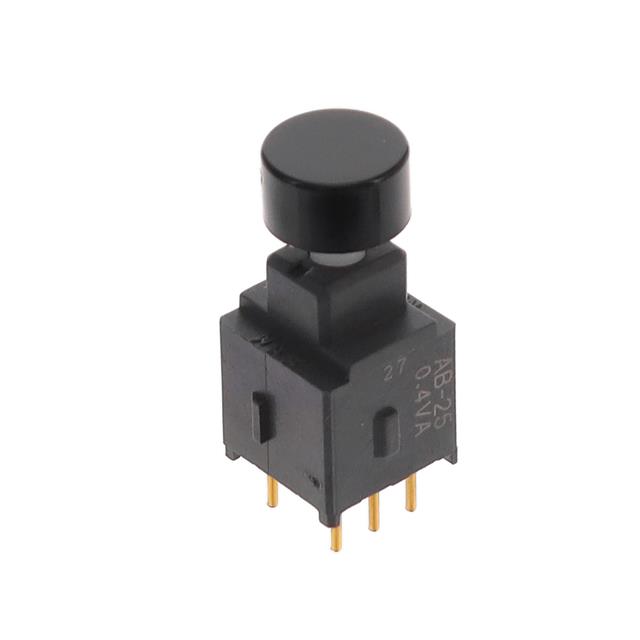

AB25AP-HA

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Type	Termination Style	Actuator Type	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Features	Current Rating (Amps)	Mounting Type	Electrical Life	Switch Function	Circuit	Voltage Rating - AC
NKK Switches AB25AP-FA	28 V	Standard	PC Pin	Button Round	No Marking	-30 ░C	85 °C	Black	Sealed - Fully	0.4 VA	Through Hole	50000 Cycles	On-Mom	DPDT	28 V
NKK Switches AB25AP-HA	28 V	Standard	PC Pin	Button Round	No Marking	-30 ░C	85 °C	Black	Sealed - Fully	0.4 VA	Through Hole	50000 Cycles	On-Mom	DPDT	28 V
NKK Switches AB25AP-HB	28 V	Standard	PC Pin	Button Round	No Marking	-30 ░C	85 °C	White	Sealed - Fully	0.4 VA	Through Hole	50000 Cycles	On-Mom	DPDT	28 V
NKK Switches AB25AP-FC	28 V	Standard	PC Pin	Button Round	No Marking	-30 ░C	85 °C	Red	Sealed - Fully	0.4 VA	Through Hole	50000 Cycles	On-Mom	DPDT	28 V
NKK Switches AB25AP-HC	28 V	Standard	PC Pin	Button Round	No Marking	-30 ░C	85 °C	Red	Sealed - Fully	0.4 VA	Through Hole	50000 Cycles	On-Mom	DPDT	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Through Hole
