TE Connectivity AMP Connectors

CONN RING CIRC 4AWG #5/16 CRIMP

Connectors, Interconnects

322897

Obsolete

TE Connectivity AMP Connectors

CONN RING CIRC 4AWG #5/16 CRIMP

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	322897

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter	0.436 in
Material - Insulation	Vinyl
Mounting Type	Right Angle, Free Hanging (In-Line)
Stud/Tab Size	0.3125 in
Stud/Tab Size	16 Stud, 5 Stud
Stud/Tab Size (Type)	Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.048 in
Width - Outer Edges	0.679 in
Wire Gauge	4 AWG

3228 Series

Part	Termination	Mounting Type	Length - Overall	Insulation	Contact Finish	Contact Material	Features	Terminal Type	Width - Outer Edges	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Thickness	Number of Wire Entries	Material - Insulation	Insulation Diameter	Color	Stud/Tab Size (Type)	Stud/Tab Size	Wire Gauge	Insulation Diameter (Max)	Insulation Diameter (Min)	Length - Ring Center to Termination	Tongue Inside Opening
TE Connectivity AMP Connectors 322833	Crimp	Free Hanging (In-Line)	0.723 in	Non-Insulated	Tin	Copper	Brazed Seam Heavy Duty Serrated Termination	Circular	0.343 in	16 AWG	14 AWG	6 Stud	0.048 in
TE Connectivity AMP Connectors 322824	Crimp			Non-Insulated			Brazed Seam Serrated Mating Area	Butt Splice Individual Openings Inline		16 AWG	14 AWG			2
TE Connectivity AMP Connectors 322897	Crimp	Free Hanging (In-Line) Right Angle		Insulated	Tin	Copper	Serrated Termination	Circular	0.679 in			0.3125 in	0.048 in		Vinyl	0.436 in	Yellow	Stud	16 Stud 5 Stud	4 AWG
TE Connectivity AMP Connectors 322823	Crimp			Non-Insulated			Serrated Mating Area	Butt Splice Individual Openings Inline		22 AWG	16 AWG			2

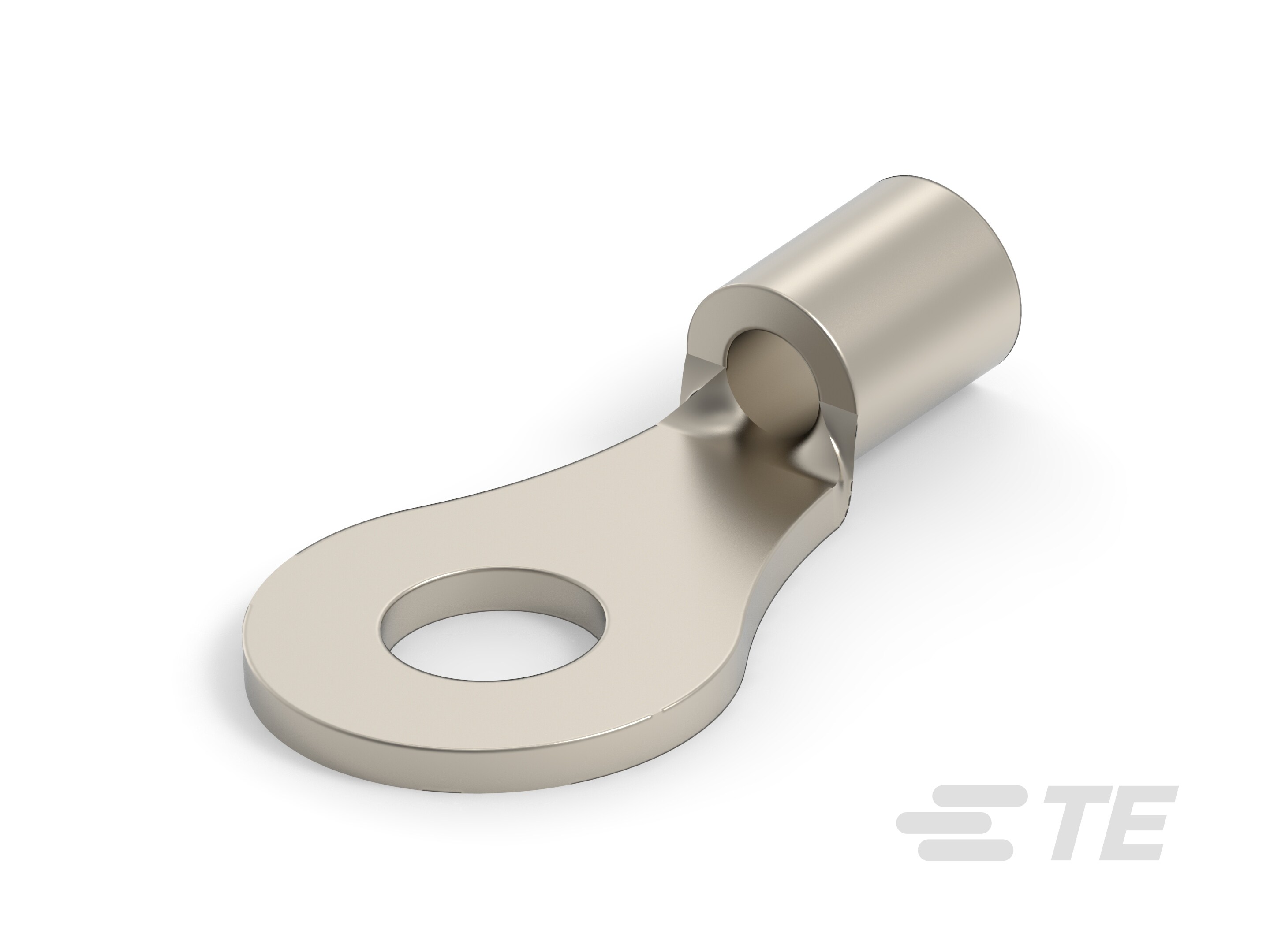

TE Connectivity AMP Connectors 322872	Crimp	Free Hanging (In-Line)	0.621 in	Non-Insulated	Tin	Nickel	Brazed Seam High Temperature Serrated Termination	Circular	0.312 in	22 AWG	16 AWG	6 Stud	0.03 in				Orange

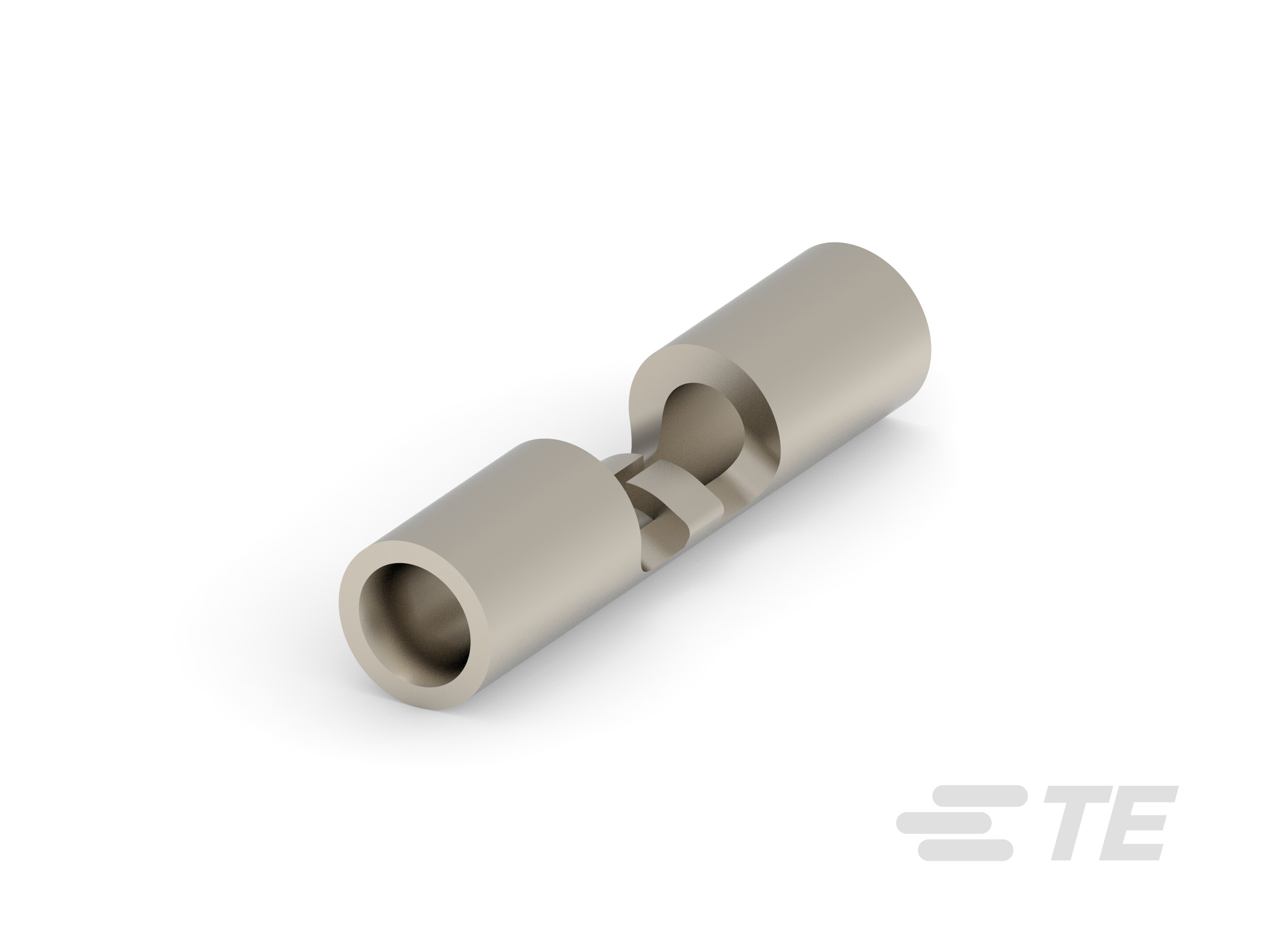

TE Connectivity AMP Connectors 322822	Crimp			Non-Insulated			Brazed Seam Serrated Mating Area	Butt Splice Individual Openings Inline		22 AWG	16 AWG			2
TE Connectivity AMP Connectors 322887	Crimp	Free Hanging (In-Line) Right Angle		Insulated	Tin	Copper	Serrated Termination	Circular	0.5 in			10 Stud	0.045 in		Vinyl	0.377 in	Blue			6 AWG
TE Connectivity AMP Connectors 322805	Crimp	Free Hanging (In-Line)	0.48 in	Non-Insulated	Nickel	Copper	Brazed Seam Serrated Termination	Circular	0.25 in	16 AWG	14 AWG	6 Stud	0.031 in
TE Connectivity AMP Connectors 322825	Crimp			Non-Insulated			Serrated Mating Area	Butt Splice Individual Openings Inline		16 AWG	14 AWG			2

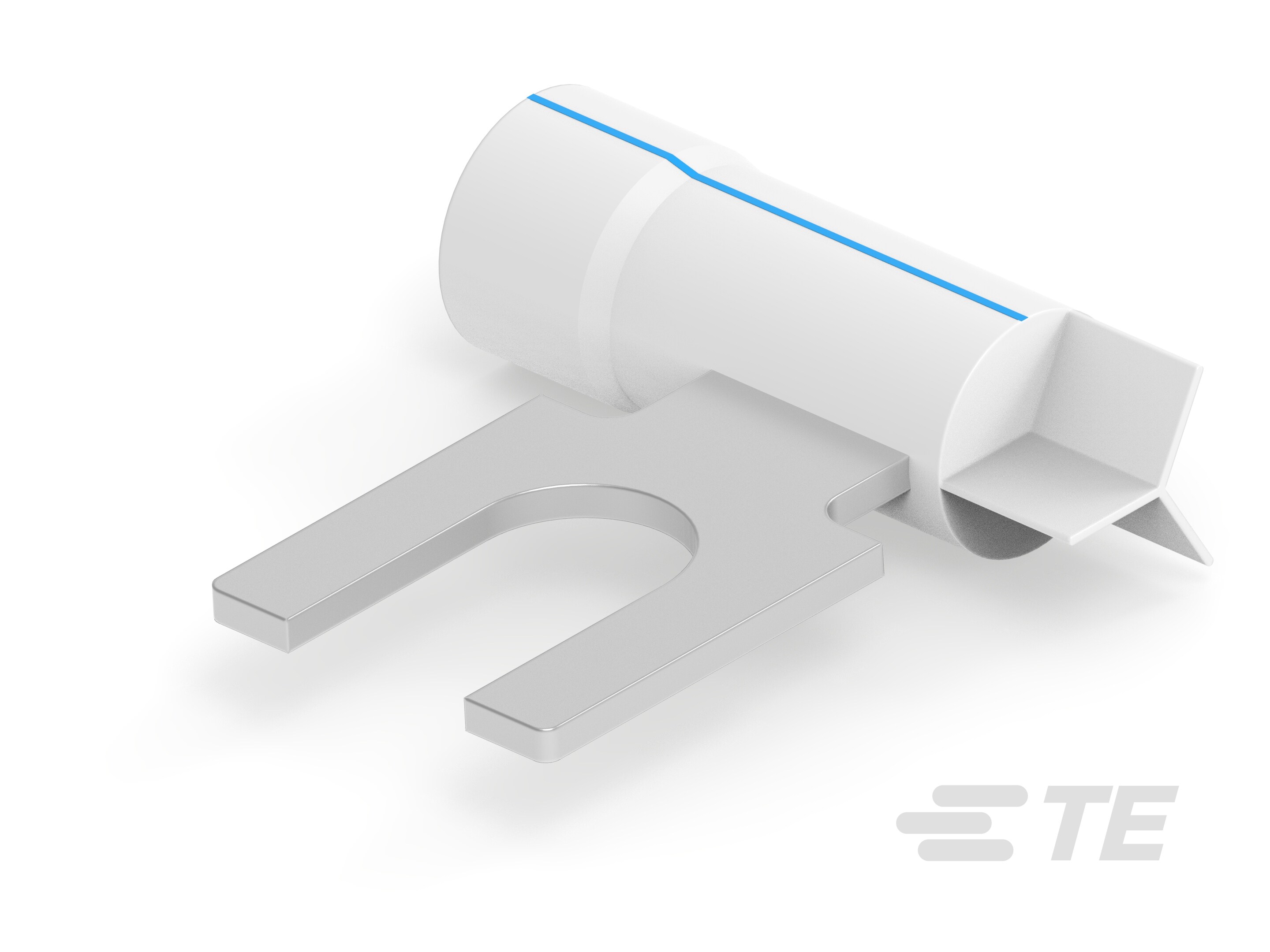

TE Connectivity AMP Connectors 322834	Crimb Flag	Free Hanging (In-Line)		Insulated	Tin	Copper		Standard	0.385 in	16 AWG	14 AWG	10 Stud			Poly-Vinyl Chloride PVC		Blue Stripe Natural				0.17 in	0.115 in	0.272 in	0.197 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bulk	100	$ 4.32	1w

CAD

3D models and CAD resources for this part

Description

General part information

3228 Series

Ring Terminal Connector 5/16 Stud Circular 4 AWG Crimp

Documents

Technical documentation and resources

322897 | Datasheet
