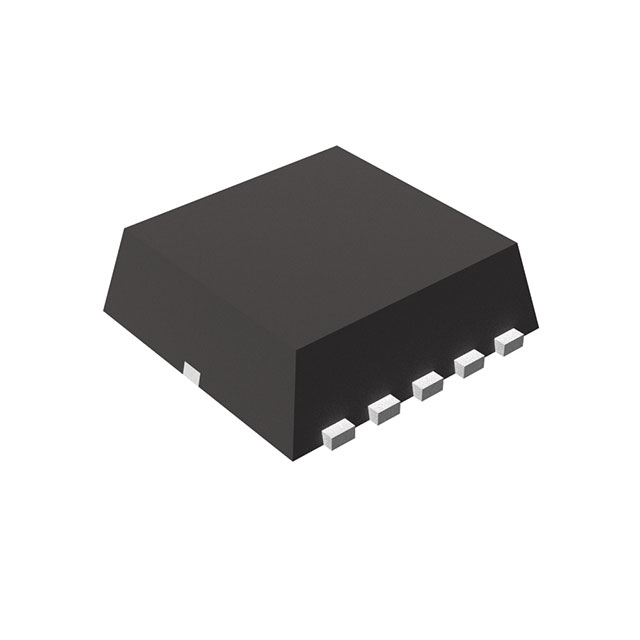

R1280D002A-TR-FE
ActiveNisshinbo Micro Devices Inc
PWM STEP-UP/INVERTING DCDC CONTR
Deep-Dive with AI
Search across all available documentation for this part.
R1280D002A-TR-FE
ActiveNisshinbo Micro Devices Inc
PWM STEP-UP/INVERTING DCDC CONTR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R1280D002A-TR-FE |
|---|---|
| Clock Sync | False |
| Control Features | Enable |
| Frequency - Switching | 700 kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Package / Case | 10-VFDFN |
| Supplier Device Package | 10-SON (2.9x2.8) |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.10 | |
| 6000 | $ 1.06 | |||
Description
General part information
R1280 Series
Boost Regulator Positive Output Step-Up DC-DC Controller IC 10-SON (2.9x2.8)
Documents
Technical documentation and resources
No documents available
