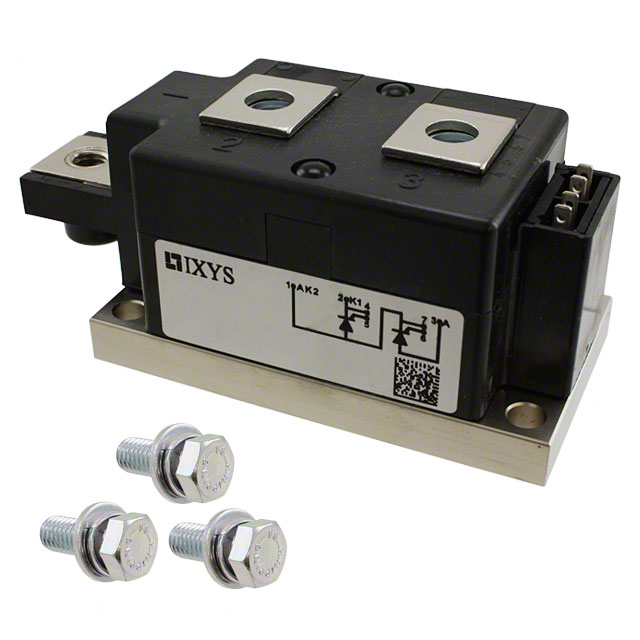

MCO500-14IO1

Active

IXYS

MOD THYRISTOR SGL 1400V Y1-CU

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR SGL 1400V Y1-CU

Technical Specifications

Parameters and characteristics for this part

Specification	MCO500-14IO1

Current - Gate Trigger (Igt) (Max) [Max]	300 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	16000 A, 17000 A
Current - On State (It (AV)) (Max) [Max]	560 A
Current - On State (It (RMS)) (Max)	880 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	Y1-CU
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.4 kV

Part	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Structure	Voltage - Off State	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Number of SCRs, Diodes	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max)
IXYS MCO500-14IO1	300 mA	2 V	560 A	300 mA	Single	1.4 kV	Chassis Mount	16000 A 17000 A	1 SCR	Y1-CU	-40 °C	140 °C	880 A
IXYS MCO500-12IO1	300 mA	2 V	560 A	300 mA	Single	1.2 kV	Chassis Mount	16000 A 17000 A	1 SCR	Y1-CU	-40 °C	140 °C	880 A
IXYS MCO500-18IO1	300 mA	2 V	560 A	300 mA	Single	1.8 kV	Chassis Mount	16000 A 17000 A	1 SCR	Y1-CU	-40 °C	140 °C	880 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 163.43

General part information

SCR Module 1.4 kV 880 A Single Chassis Mount Y1-CU
