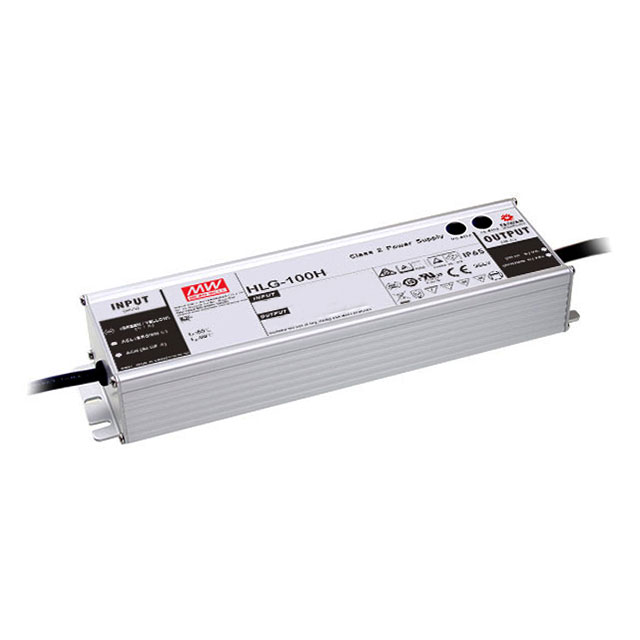

HLG-100H-24AB
ActiveMEAN WELL USA Inc.
O/P +24V4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLG-100H-24AB
ActiveMEAN WELL USA Inc.
O/P +24V4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-100H-24AB |
|---|---|
| Approval Agency | KC, CB, EAC, TUV, PSE, cURus, RCM, CCC, CE |
| Current - Output (Max) [Max] | 4 A |
| Dimming | Analog, PWM |
| Efficiency | 93 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 96 W |
| Ratings | IP65 |
| Size / Dimension [x] | 7.72 " |
| Size / Dimension [x] | 196 mm |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [z] | 1.53 in |
| Size / Dimension [z] | 38.8 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 24 V |
HLG-100H Series
| Part | Termination Style | Number of Outputs | Ratings | Type | Mounting Type | Power (Watts) | Voltage - Input (Min) [Min] | Efficiency | Topology | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Approval Agency | Voltage - Isolation | Features | Voltage - Output [Min] | Voltage - Output [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Dimming | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | Wire Leads | 1 | IP65 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 4 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 22 V | 27 V | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | ||
MEAN WELL USA Inc. | Wire Leads | 1 | IP67 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 1.77 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 27 V | 54 V | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | Analog PWM | |
MEAN WELL USA Inc. | Wire Leads | 1 | IP65 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 4 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus EAC KC PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | Analog PWM | 24 V | ||
MEAN WELL USA Inc. | Wire Leads | 1 | IP65 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 38 V | 46 V | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | |||
MEAN WELL USA Inc. | Wire Leads | 1 | IP67 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 21 V | 42 V | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | Analog PWM | ||
MEAN WELL USA Inc. | Wire Leads | 1 | IP67 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 4.8 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | ||||
MEAN WELL USA Inc. | Wire Leads | 1 | IP67 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 1.77 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 27 V | 54 V | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | ||
MEAN WELL USA Inc. | Wire Leads | 1 | IP67 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 3.2 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 15 V | 30 VDC | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | Analog PWM | |
MEAN WELL USA Inc. | Wire Leads | 1 | IP67 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 4 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 12 V | 24 V | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | Analog PWM | |
MEAN WELL USA Inc. | Wire Leads | 1 | IP67 | Constant Current Voltage | Chassis Mount | 96 W | 90 VAC | 93 % | AC DC Converter | 2 A | -40 °C | 80 C | 305 VAC | CB CCC CE cURus PSE RCM TUV | 3750 V | OCP OTP OVP SCP | 24 V | 48 V | 7.72 " | 1.53 in | 196 mm | 38.8 mm | 2.68 " | 68 mm | Analog PWM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 63.43 | |
| 5 | $ 58.00 | |||
| 10 | $ 55.80 | |||
| 25 | $ 53.02 | |||
Description
General part information
HLG-100H Series
4A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
