87667-1
ActiveTE Connectivity AMP Connectors

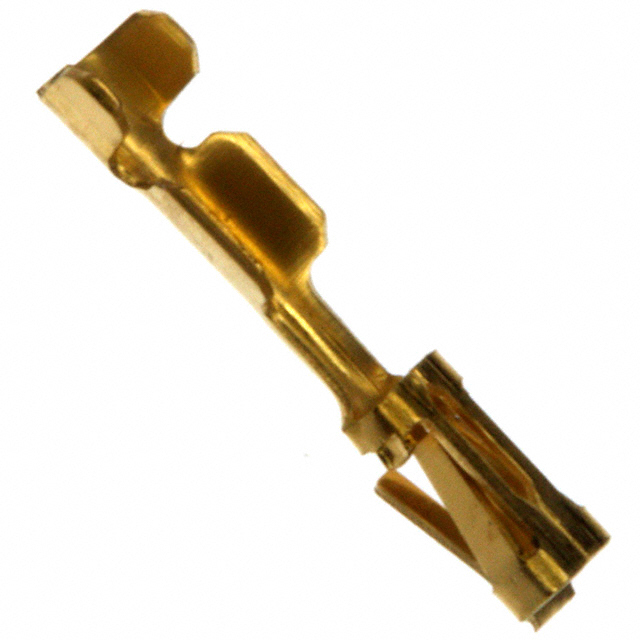

CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87667-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87667-1 | 87667 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 1.27 Ám |
| Contact Finish Thickness | 30 Áin | 15 - 50 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
87667 Series
CONN SOCKET 22-26AWG CRIMP GOLD
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Contact Finish | Pin or Socket |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87667-2 | 22 AWG | 26 AWG | 0.76 Ám | 30 Áin | Crimp | Gold | Socket |
TE Connectivity AMP Connectors 87667-4 | 22 AWG | 26 AWG | 1.27 µm | 50 µin | Crimp | Gold | Socket |
TE Connectivity AMP Connectors 87667-5 | 22 AWG | 26 AWG | 0.38 µm | 15 µin | Crimp | Gold | Socket |
TE Connectivity AMP Connectors 87667-1 | 22 AWG | 26 AWG | 0.76 Ám | 30 Áin | Crimp | Gold | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50000 | $ 0.69 | |
Description
General part information
87667 Series
Socket Contact Gold 22-26 AWG Crimp
