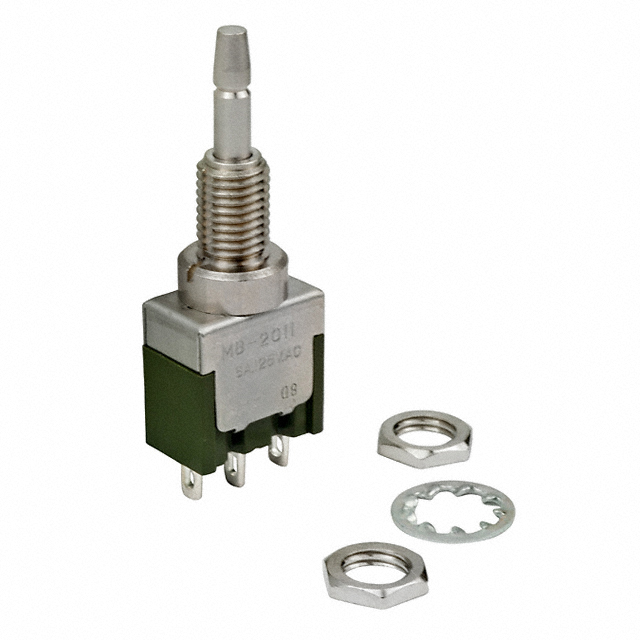

MB2011LS4W01

Obsolete

NKK Switches

SWITCH PUSHBUTTON SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2011LS4W01

Obsolete

NKK Switches

SWITCH PUSHBUTTON SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2011LS4W01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MB2011L Series

Part	Mounting Type	Voltage Rating - AC	Features	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Mechanical Life	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Electrical Life	Current Rating (Amps)	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Type	Ingress Protection
NKK Switches MB2011LD1W01-CA	Panel Mount Rear	125 V	Epoxy Sealed Terminals	Black	30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Button Round	SPDT	6.5 mm	Standard
NKK Switches MB2011LS1A05-CA	Panel Mount Rear	125 V	Epoxy Sealed Terminals	Black	30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Wire Wrap	25000 Steps	3 A 6 A	Button Round	SPDT	6.5 mm	Standard
NKK Switches MB2011LS1W01-BF	Panel Mount Rear	125 V	Epoxy Sealed Terminals	Green	30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Button Round	SPDT	6.5 mm	Standard
NKK Switches MB2011LD3W01-CH	Panel Mount Rear	125 V	Epoxy Sealed Terminals		30 V	On-Mom		No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Button Round	SPDT	6.5 mm	Standard	IP67 - Dust Tight Waterproof
NKK Switches MB2011LS1A01-CC	Panel Mount Rear	125 V	Epoxy Sealed Terminals	Red	30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Button Round	SPDT	6.5 mm	Standard
NKK Switches MB2011LS1G01-BC	Panel Mount Rear	28 V	Epoxy Sealed Terminals	Red	28 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	50000 Cycles	0.4 VA	Button Round	SPDT	6.5 mm	Standard
NKK Switches MB2011LS4W01	Panel Mount Rear	125 V	Epoxy Sealed Terminals		30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Plunger for Cap	SPDT	6.5 mm	Standard
NKK Switches MB2011LD1W01	Panel Mount Rear	125 V	Epoxy Sealed Terminals		30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Plunger for Cap	SPDT	6.5 mm	Standard
NKK Switches MB2011LS1W01-BE	Panel Mount Rear	125 V	Epoxy Sealed Terminals	Yellow	30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Button Round	SPDT	6.5 mm	Standard
NKK Switches MB2011LD1W01-BA	Panel Mount Rear	125 V	Epoxy Sealed Terminals	Black	30 V	On-Mom	100000 Cycles	No Marking	-30 ░C	85 °C	Solder Lug	25000 Steps	3 A 6 A	Button Round	SPDT	6.5 mm	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.01
		10	$ 6.31
		25	$ 5.99
		50	$ 5.74

Description

General part information

MB2011L Series

Pushbutton Switch SPDT Standard Panel Mount, Rear

Documents

Technical documentation and resources
