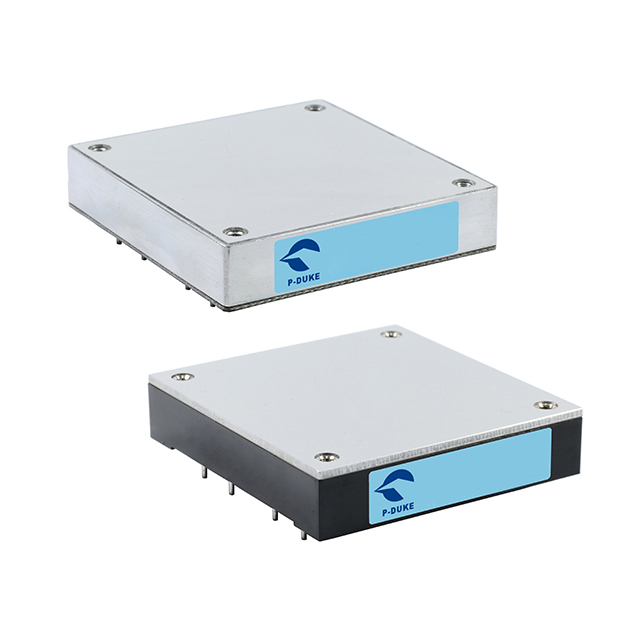

HAE150-110S48W

Active

P-DUKE Technology

DC DC CONVERTER 48V 182W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HAE150-110S48W

Active

P-DUKE Technology

DC DC CONVERTER 48V 182W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HAE150-110S48W	HAE150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus, CE	CB, cURus, CE
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	3.8 A	3 - 15 A
Efficiency	90 %	90 - 91 %
Features	Remote On/Off, Adjustable Output, Baseplate, Remote Sense	Remote On/Off, Adjustable Output, Baseplate, Remote Sense
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Half Brick	Half Brick
Power (Watts)	182 W	144 - 182 W
Size / Dimension [x]	2.4 in	2.4 in
Size / Dimension [x]	61 mm	61 mm
Size / Dimension [y]	2.28 in	2.28 in
Size / Dimension [y]	57.9 mm	57.9 mm
Size / Dimension [z]	0.5 in	0.5 in
Size / Dimension [z]	12.7 mm	12.7 mm
Standard Number	60950-1	60950-1
Supplier Device Package	Half Brick	Half Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	36 - 160 V
Voltage - Input (Min) [Min]	43 V	8.5 - 43 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	48 V	12 - 48 V

HAE150 Series

DC DC CONVERTER 12V 156W

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 1	Control Features	Mounting Type	Voltage - Input (Max) [Max]	Approval Agency	Standard Number	Applications	Features	Power (Watts)	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]
P-DUKE Technology HAE150-48S12W	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Half Brick	1	Half Brick	16.5 V	3000 V	13 A	12 V	Active Low, Enable	Through Hole	75 V	CB, CE, cURus	60950-1	ITE (Commercial)	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	156 W	91 %	Isolated Module	-40 °C	115 °C
P-DUKE Technology HAE150-110S12W	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Half Brick	1	Half Brick	43 V	3000 V	15 A	12 V	Active Low, Enable	Through Hole	160 V	CB, CE, cURus	60950-1	ITE (Commercial)	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	180 W	90 %	Isolated Module	-40 °C	115 °C
P-DUKE Technology HAE150-110S48W	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Half Brick	1	Half Brick	43 V	3000 V	3.8 A	48 V	Active Low, Enable	Through Hole	160 V	CB, CE, cURus	60950-1	ITE (Commercial)	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	182 W	90 %	Isolated Module	-40 °C	115 °C
P-DUKE Technology HAE150-24S48W	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Half Brick	1	Half Brick	8.5 V	3000 V	3 A	48 V	Active Low, Enable	Through Hole	36 V	CB, CE, cURus	60950-1	ITE (Commercial)	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	144 W	90 %	Isolated Module	-40 °C	115 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 236.57
		10	$ 207.93
		25	$ 197.52
		50	$ 189.99

Description

General part information

HAE150 Series

Isolated Module DC DC Converter 1 Output 48V 3.8A 43V - 160V Input
